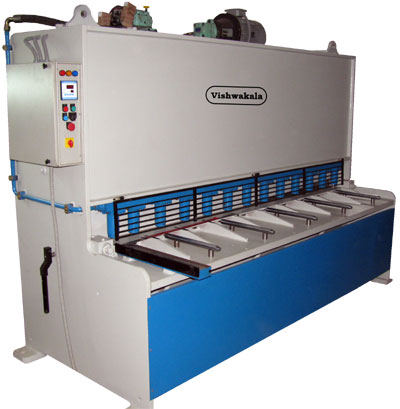

Vishwakala Hydraulic Sheet Shearing Machine

Model

Shearing
Length mm

Shear Thickness
Rake Angle
(Min./Max.)

Rake Angle

Rake Angle Range

Strokes/Minute
at Min. & Max.
Rake Angle

Hold
downs

Holding Force Kgs.

Power H.P.

Over all
Dimension
in mm
(L x W x H)

Approx. Weight Kgs.

M.S.

S.S.

VHVR253

2500

3.15⁄4

2⁄3

1°15'

0.5-2°

28-13

13

2500

5

3150 × 2000 × 2400

3800

VHVR303

3000

3.15⁄4

2⁄3

1°15'

0.5-2°

24-9

16

2500

5

3500 × 2000 × 2400

4400

VHVR124

1250

4⁄6

3⁄4

1°37’

0.5-3°

33-17

5

4000

5

2000 × 2000 × 2400

2700

VHVR154

1500

4⁄6

3⁄4

1°37'

0.5-3°

30-15

8

4500

5

2250 × 2000 × 2400

3200

VHVR204

2000

4⁄6

3⁄4

1°37'

0.5-3°

28-13

11

6200

7.5

2750 × 2000 × 2400

3500

VHVR254

2500

4⁄6

3⁄4

1°37'

0.5-3°

26-8

13

8000

7.5

3400 × 2350 × 2450

5200

VHVR304

3000

4⁄6

3⁄4

1°37'

0.5-3°

24-6

16

10000

10

4000 × 2350 × 2450

6000

VHVR404

4000

4⁄6

3⁄4

1°45'

0.5-3°

22-6

20

12000

10

4500 × 2350 × 2450

8500

VHVR156

1500

6⁄8

4⁄6

1°45'

0.5-3°

24-8

9

6600

10

2250 × 2350 × 2500

4000

VHVR206

2000

6⁄8

4⁄6

1°45'

0.5-3°

22-7

11

6500

10

2750 × 2350 × 2500

4300

VHVR256

2500

6⁄8

4⁄6

1°45'

0.5-3°

28-8

14

8500

15

3400 × 2350 × 2500

6200

VHVR306

3000

6⁄8

4⁄6

1°45'

0.5-3°

24-6

16

10800

15

4000 × 2350 × 2500

7000

VHVR406

4000

6⁄8

4⁄6

2°

0.5-3°

24-6

20

13600

20

5100 × 2700 × 2800

8400

VHVR158

1500

8⁄10

6⁄8

2°

0.5-3°

22-10

9

10500

15

2250 × 2600 × 2650

5000

VHVR208

2000

8⁄10

6⁄8

2°

0.5-3°

18-8

11

12500

15

2750 × 2600 × 2650

5500

VHVR258

2500

8⁄10

6⁄8

2°

0.5-3°

24-8

14

16300

20

3500 × 2600 × 2650

6800

VHVR308

3000

8⁄10

6⁄8

2°

0.5-3°

20-6

16

18500

20

4200 × 2600 × 2650

7700

VHVR408

4000

8⁄10

6⁄8

2°

0.5-3°

20-8

20

23000

25

5200 × 2900 × 2800

13500

VHVR1510

1500

10⁄13

8⁄10

2°

0.5-3°

20-10

9

10500

15

2250 × 2650 × 2700

5500

VHVR2010

2000

10⁄13

8⁄10

2°

0.5-3°

18-8

11

12600

15

2750 × 2650 × 2700

6000

VHVR2510

2500

10⁄13

8⁄10

2°

0.5-3°

24-8

14

17500

20

3600 × 2650 × 2700

8000

VHVR3010

3000

10⁄13

8⁄10

2°

0.5-3°

20-6

16

20000

20

4200 × 2650 × 2700

10500

VHVR4010

4000

10⁄13

8⁄10

2°

0.5-3°

18-6

20

25000

30

5200 × 2900 × 2900

15200

VHVR2013

2000

13⁄16

10⁄13

2°

1-3°

13-5

11

16500

20

2750 × 2650 × 2950

7000

VHVR2513

2500

13⁄16

10⁄13

2°

1-3°

15-10

13

32000

25

3600 × 2650 × 2950

9600

VHVR3013

3000

13⁄16

10⁄13

2°

1-3°

12-6

16

37000

25

4200 × 2650 × 2950

11800

VHVR4013

4000

13⁄16

10⁄13

2°

1-3°

10-4

20

22000

30

5200 × 3000 × 3050

17800

VHVR2016

2000

16⁄20

13⁄16

2°

1-3°

13-7

11

20000

25

2750 × 2950 × 3150

12000

VHVR2516

2500

16⁄20

13⁄16

2°

1-3°

15-8

13

40000

30

3600 × 2950 × 3150

12000

VHVR3016

3000

16⁄20

13⁄16

2°

1-3°

12-6

16

43500

30

4250 × 2950 × 3150

15300

VHVR4016

4000

16⁄20

13⁄16

2°

1-3°

10-4

20

30000

30

5200 × 3050 × 3500

21500

VHVR2020

2000

20⁄25

16⁄20

2°

1-3°

16-8

11

32000

40

2900 × 2950 × 3150

17000

VHVR2520

2500

20⁄25

16⁄20

2°

1-3°

15-8

13

48000

40

3600 × 2950 × 3150

18000

VHVR3020

3000

20⁄25

16⁄20

2°

1-3°

12-6

16

52000

40

4250 × 2950 × 3150

20000

VHVR4020

4000

20⁄25

16⁄20

2°

1-3°

10-4

20

30000

50

5200 × 3050 × 3500

24000
