Vishwakarma Fast Knit Braiding Machine

Listing ID #433468

90,000 / Piece

Get Latest Price

MOQ 1 Set(s)
Brand NameVishwakarma
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

We are offering fast knit braiding machine. Fast knit braiding machine machine name :- fast knit braiding machine model :- " combi" ( double head ) our organization has gained vast experience in....

View More Details

Send Enquiry

Product Details

We are offering fast knit braiding machine.

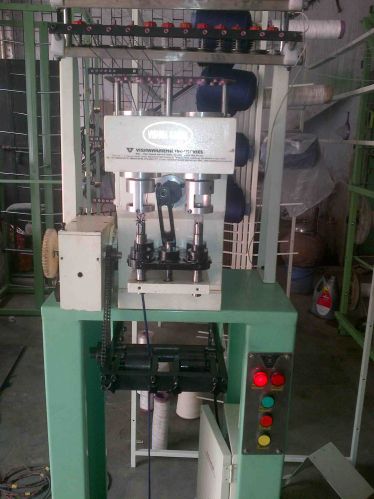

Fast knit braiding machine
machine name :- fast knit braiding machine
model :- " combi" ( double head )
our organization has gained vast experience in offering technically advanced braiding machine to our clients. These are manufactured using best grade raw materials and advanced technology. We also offer our range in various specifications, which can be customized as per the specification given by our clients.
Features:
·space saving, because of compact design
·the machine is high speed and still quite in running
· the yarn packages, generally available in cone form, can directly mounted on creel and fed to the machine
·machine stops automatically in case of yarn breakage or exhausted
·continuous attendance of operator is not required
·any diameter ranging from 2mm to 12mm can be produced on the same machine by just changing the cylinder and thread guide
·construction of cord 4, 6, 8, 12 bobbins is possible on same machine
·density (pickscm) of produced cord is adjustable by change gears
technical specification:
· diameter of cord- 2 to 12 mm
· no. Of fabric cords -2
· speed- 1200 rpm.
·production 80 to 300 meter per hour per head.
· no. Of needles 4, 6, 8,12
· motor 0.5 h.p. (0.37 kw)
· net weight 150 kgs.

Additional Information

Payment Terms D/A, D/PT/T
Port of Dispatch any
Packaging Details WOODEN BOX AS PER EXPORTS
Delivery Time 2-3 Weeks

Company Details

Vishwakarma industries (an ISO 9001:2008 certified company) is a reputed manufacturer & exporter of textile machinery. We are well known for narrow fabric machines since a decade and widely acclaimed for our international standard products, viz., high speed needle loom, fast knit braiding machine, tape loom, narrow fabric needle loom, warping machine, measuring & winding machines, gauze bandage rolling and cutting machine, aluminum beam, creel stand, beam stand, and special purpose machinery.
products for the following applications can be made from our machines :-
for the manufacture of satin ribbon, elastic tapes, mattress tape plain & design tapes, cotton tapes, twill tape, nylon tapes, elastic bandage, cotton bandage,malai dori, fancy dories, fiber glass tapes, zipper tapes, jute tapes, mono filament tapes, curtain tapes, crepe bandage, hand bag tapes, tapes for identity cards, cotton, jute and mono-filament niwars, safety belts, cargo lifting belts, boarder tapes for saris, elastics & strips for ladies and gents under garments, belts for jumbo bags, laces, labels etc.
our machines are sturdy and balanced design structure. The machines are supplied in different models. Fabric width wise from 5 mm to 175 mm and nos. Of tape 2 to 20 nos. According to width of fabric. Max. Healed frame are 16 nos. Which is enough for general weaves used in elastic as well as rigid tapes. That gives sufficient space for smooth working. All general features like electro magnetic brake, auto stop motion for warp and weft, lock thread weaving systems are provided in our all models. Our standard supply includes system for warp supply through beams.
Our full effort, devoted for customers' satisfaction, starts from their exact need up to commissioning of the machines. We ensure prompt after sales service and understand customers' production program. We are always on a pace of modernization & improvement of our products, based on field feedback, customers' suggestions, requirements and constant effort on r&d.
