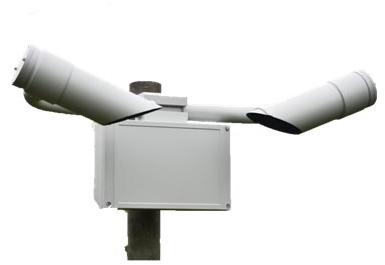

Visibility Sensor

We are offering visibility sensor.
Overview
frt vre visibility sensor is be composed of the light emitter, light receiver and microprocessor controllers and other components. Emitter emits pulses of infrared light, the receiver simultaneously detect pulses of light intensity from atmospheric particles scattering. All information collected by measuring micro-controller and through specialized mathematical model algorithm into a meteorological visibility distance.
Features
integrated design, compact, lightweight, easy to install.
Inclination structure designed to prevent dust, rain, snow, sun pollution.
Anti-dust, anti-fungal coating treatment. Ip65 degree of protection.
Low consumption, in the winter heating state, less than 5w.
Built-in watchdog circuit, the instrument is stable and reliable.
Light extinction process, prevent secondary stray light interference.
15kv esd protection ,lightning-protection design
qualification�
item description
measuring range� 5m�10km 5m-30km 5m-50km
accuracyï¼� â�¤2km residual â±2% ; 2kmï½�10km residual â±5%
consistencyï¼� â�¤â±4%
data update interval 15s�60s option
optical parameters
scattering angle cover 39â°ï½�51â° forward scatter
peak wavelength 870nm
bandwidth
100nm
power
input dc12v
power consumption
