Vision Inspection System

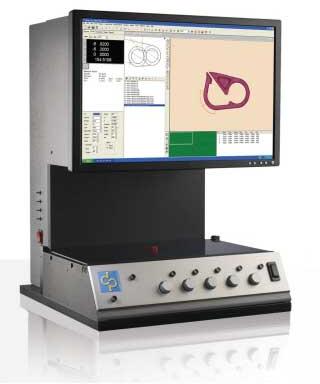

We are offering one touch vision inspection system.
onetouch-lv
large view digital metrology station for small part quick measurement
40 mm x 30 mm fov
2048 x 1536 image resolution
push button to start measurement
auto part matching for alignment and skew
master part image comparison
comparator type direct crosshair measurement
all in one, small footprint
main dmp-3000 features
• support firewire, cameralink, usb2 and other digital camera interface or frame grab- ber for live image display, measurement and annotation.
• up to three axes display and measurement.
• stage mapping.
• advanced edge detection for sub-pixel accu- rate measurement.
• cad import and export.
• easy dimensional measurement with cad- like graphics.
• supports inch, millimeter, mil and micron units,
cartesian and polar coordinates.
• datum reference frame for alignment and tolerance.
• user-defined measurement calculations and functions.
• up to 32000 points per feature.
• save, open, run and edit part program capa- bility.
• group editing.
• real-time linked to other applications, such as spreadsheets, spc and best-fit.
• custom report.
• flexible data format for post processing.
• color or monochrome images acquisition, archiving and retrieval.
• image annotation and comparison.
• international language support.
• on-line help.
features and functions
file
• new
• open
• save
• save as
• properties
• run
• run step
• run repeat
• import
• set origin
• export
• recent files
• exit
output
• format
• dde link
• save results
• print results
• send results
• edge points
• result buffers
help
• help
• about tool
• find
• teach
• copy
• test
• update
• edit
• crosshair tool
• edge tool
• circle tool
• arc tool
• linewidth tool
• ellipse tool
• area tool
• cross target
• rectangle target
feature
• tool
• relative tool
• point
• line
• arc
• circle
• user feature
• gauge ball
• gauge diameter measure
• edit
• distance
• circle
• linewidth
• angle
• area
• position
• circularity
• concentricity
• straightness
• angularity
• parallelism
• perpendicularity
• size
• statistics
• create result buffer
• add result buffer
• clear result buffer
auxiliary
• comment
• prompt
• calibrate x
• calibrate y
• set calibration
• camera video
• live image
• capture
• open image
• import image
• histogram
• pixel
• enlarge
• maximize
• reference
• overlay
• subtract
• blink
• compare
• copy image
• save image
• print setup
• print preview
• print
setup
• system setup
• lock tool x
• lock tool y
• calibration
• change password
• restore password
• home
construction
• zero
• frame
• offset
• project
• mirror
• rotate
• parallel
• intersect
• bisect
• perpendicular
• create variable
• math
view
• zoom in
• zoom out
• zoom window
• zoom all
• zoom viev
• show drawing
bar
• show annotation
• shift graphics
• rotate graphics edit
• setup
• modify
• insert
• delete
• select all
• remove last
• rename
• print
• cancel
• duplication
• set break point
• clear break point
annotation
• color
• line width
• text
• line
• arrow
• circle
• rectangle
• ellipse
• polygon
• curve
• ruler
