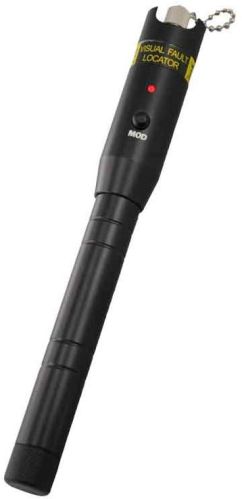

Visual Fiber Fault Locator,optical Fiber Checker TLD1565

TLD1500 Series is high quality of Optical Fiber Checker，It contains the most advanced laser technology and microelectronics technology, and can be measured with various fiber optic adapter with ø2.5mm common Interface. It is very convenient for them to check the single-mode and multimode fiber.
Features
w High visible red laser output
w Easy-to-use "quick access" interface
w Small size, light weight, high reliability
w Battery for power supply
w Suitable for all 2.5 mm optical fiber connector
Applications
w Fiber production and research devices
w Fiber Network Testing and Maintenance
w Optical Communication Teaching and Test
Technology Parameters
Type TLD1565
Light source F-P LD
Wavelength 635nm
output power >-3dBm
The way of Light Output
Continuous output \1Hz modulation output
Optical Interface
Universal Interface(FC,SC,ST)
Work range ≥5KM
Power Supply
2 x batteries
Operating Temperature
-10~+50°C
Storage Temperature
-20~+80°C
Battery Operating Time
15h
Size L：190 mm ø ：25 mm
Weight 140g
