Visual Piston Flow Switch

MOQ1 Piece(s)
Protection classIP65
Accuracy±2.5% of full scale
Output:Passive ,Dry reed switch, capacity 24VDC / 250VAC ,1.5A
Avg pressure loss0.3bar( at 25L/min)
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

Avg pressure loss0.3bar( at 25L/min)
Output:Passive ,Dry reed switch, capacity 24VDC / 250VAC ,1.5A
Protection classIP65
Connection typeHirschman plug(B12 plugs)
Medium tempMax. 160℃
Accuracy±2.5% of full scale

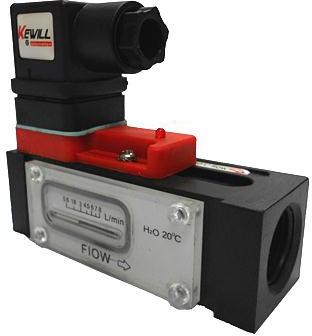

We are offering visual piston flow switch.
characteristics
1.it is the gas-liquid dual-purpose type,
2.minimal pressure loss,good repeatability,dirt-resistance,
3.mechanical/electronic part completely isolated,suitable for small flow economy.
4.3 times in the original fp50 piston stroke so that more accurate setting accuracy.
5.with the switch setting scale, the user need not in the scene setting.
6.led display switch state.
