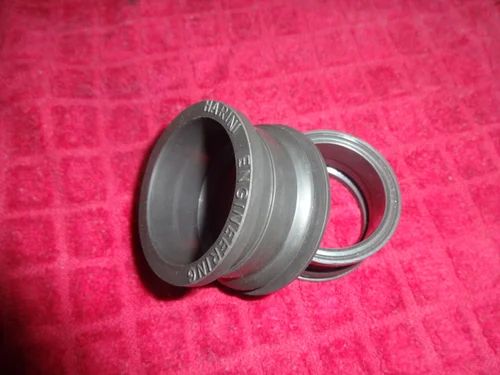

SS304 Stainless Steel Coated Viton Bellow Mechanical Seal

A Viton® bellows mechanical seal is a high-performance sealing component combining a flexible bellows structure (typically metal or PTFE) with Viton (fluoroelastomer) secondary sealing. These seals are widely used in rotating equipment like pumps and agitators, particularly in chemical, petrochemical, and high-temperature environments.

Bellows

\
• \

  Material: Can be welded metal (e.g., Hastelloy, Inconel, stainless steel), PTFE, or rubber.

  \
\
• \

  Function: Acts as both spring and secondary seal, compensating for shaft misalignment and thermal expansion.


  \
  \
  1. \

     Primary Sealing Faces

     \
     \
     • \

       Typically durable materials such as silicon carbide (SiC), carbon, or tungsten carbide.

       \
     \
     \
  \
  2. \

     Secondary Seal (O-ring or elastomer)

     \
     \
     • \

       Made from Viton, chosen for its excellent chemical resistance and broad temperature range.


       \Key Advantages\



       \
       \
       • \

         Corrosion & Chemical Resistance:
         Viton seals resist hydrocarbons, acids, solvents, and aromatic compounds, making them ideal for aggressive fluids.

         \
       \
       • \

         Wide Operating Range:

         \
         \
         • \

           Bellows: Designed for temperatures up to 260 °C (with metal alloys like Hastelloy).

           \
         \
         • \

           Viton: Performs from approximately −20 °C to +200 °C (some grades maintain integrity up to +250 °C).

           \
         \
         \
       \
       • \

         Axial Flexibility:
         Bellows accommodate movement, vibration, and shaft deflection without compromising seal integrity.
