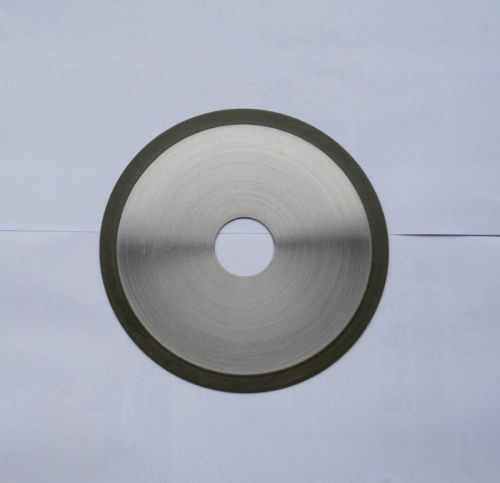

Vitrified Bond Cbn Wheels

We offer Vitrified Bond Cbn Wheels.
Vitrified diamond grinding wheel for PCD, CVD, CBN, carbide, ceramic knives and other cutting tools milling cutters, drills, reamers and other cutting tools, grinding and fast, efficient and low damage grinding. The cup-shaped LIDE series vitrified bond grinding wheel, suitable as precision grinding of PCD and CBN tools.
The advantages of our products
Zhengzhou City Lide Industrial Co., Ltd. To produce vitrified bond diamond grinding wheel, to solve the problem of most tool manufacturers sharpening low efficiency, poor quality edge. Vitrified diamond grinding wheel sharpness of its high 1.5 to 3 times the sharpening tool maker can be more efficient and cutting edge quality will be greatly improved.
Vitrified diamond grinding wheel grinding parts: the end face of the peripheral surface of the chip breaker groove, bevel, hole machining grinding.
Vitrified bond diamond grinding wheel Technical Reference:
Type
D(mm)
T(mm)
H (mm)
W(mm)
X(mm)
6A2
100
40
20/32/40
5/10/15
10
125
40
32/40
5/10/15
10
150
40
32/40
5/10/15
10
11A2,12A2
100
40
20/32/40
3/5/10
3-10
125
40
32/40
3/5/10
3-10
150
40
32/40
3/5/10
3-10
Grit: W3.5 W5 W10 W20 W28 W40 325/400
According to customer's requirements.
