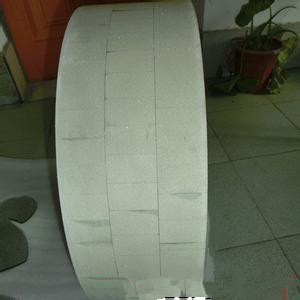

Metal Vitrified Bond Diamond Centerless Grinding Wheel 350

Offering vitrified bond diamond centerless grinding wheels,
vitrified bond diamond centerless grinding wheel for precision grinding the cylinder of polycrystalline diamond compacts (pdc cutter), compared with resin diamond grinding wheel, our vitrified bond wheels lead to 35% grinding cost reduced, 40% grinding time of each pdc saved, and the size precision of pdc improved (from ±0.03mm to ±0.01mm).
main features of centerless grinding wheel:
1. Efficient batch external grinding
2. High roundness and cylindricity of workpiece and good consistency of dimension
3. Good surface finish after fine grinding
4. Resin bond diamond centerless grinding wheel is suitable for rough grinding, semi-fine grinding and fine grinding
application:
centerless grinding wheel is mainly used for processing carbide, ceramics, silica glass, magnetic material, stainless steel bar, pcd, pcbn, etc.
type d (mm) t (mm) h (mm) x (mm)
1a1,6a1,9a1
200 50 75 10
1a1,6a1,9a1 250 100 75 10
1a1,6a1,9a1 300 100,150 127 10
1a1,6a1,9a1 350 125,150 127 10
1a1,6a1,9a1 400 150,300 203 10
1a1,6a1,9a1 450 150,200,300 228.6 10
1a1,6a1,9a1 500 150,200 305 10
according to customer's requirements.
