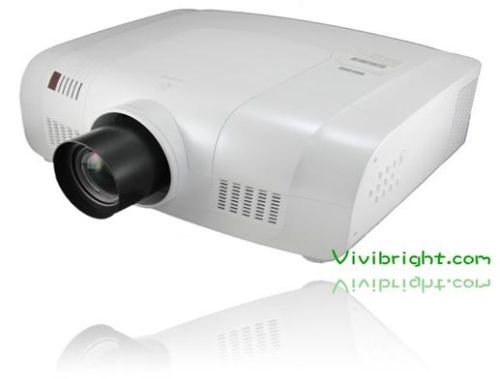

Vivibright Projector PLX8100F With HDMI RG45 LAN For Large Venue,Ciname,Auditorium

PLX8100F & PLW8100F ( Large Venue / Auditorium Projector)
* Professional large-scale projects projector Widely used in digital cinema, and Large screen tiled display And commercial ads.
* More Than 8000 ISO lumens brightness, the standard physical resolution is 1024 x 768 Pixels.
* With HDMI 1.3 ports, support 30-bit ,36-bit and 48-bit (RGB or YCbCr) color gamut,Provides better color performance More than Traditional HDMI 24-bit color Depth.
* Built-In RJ45 Network Equipment Interfaces,It Allows The Projector Through The Network Cable To Connect PC,User Through The Computer To The Projector Control, Setting And Other Operations.
• Product Type High-end Professional Large Venue / Auditorium Projector
Optical Parameters Display Technology 3 LCD Panels x 0.79" Sony Policilicon
Resolution PLX8100F, Native XGA (1024 x 768 Pixels)
PLW8100F,Native WXGA (1280 x 800 Pixels)
Maximum Resolution Full HD (1920 x 1080 Pixels)
True brightness 8,000 ANSI Lumens (Std),LX8100F
10,000 ANSI Lumens (Std), LW8100F
Contrast Ratio Iris Option 3,500:1 (Full On/Full Off)
Aspect Ratio 4:3 Native, 16:9 Compatible
Displayable Colors 16.8 million,24-bit RGB
Light uniformity 95%
Projection Method Front, Rear, Ceiling Mount, Table Top;
Projection Image Image support horizontal and vertical flip
Keystone Correction ±40° Vertical,Automatic keystone correction
3D Compatibility 3D-Ready Meet and support the 3D Red-blue, Red-green Film Source.With the 3D image noise reduction
• Compatibility Computer Compatibility IBM PC and Compatibles, Apple Macintosh, iMac, and VESA Standards 1080p (1,920x1,080), WSXGA+ (1,680 x 1,050)WXGA+ (1,440 x 900), WXGA (1,280 x 800, 1,280 x 768), UXGA (1,600 x 1,200), SXGA+ (1,400 x 1,050), SXGA (1,280 x 1,024),XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)
Horizontal Scan Rate 15 - 150 kHz (Depending on Resolution)
Vertical Refresh Rate 48 - 190 Hz (Depending on Resolution)
Video Compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM(B/D/G/K/K1/L)
HDTV (720p, 1080i, 1080P),EDTV (480p, 576p),SDTV (480i, 576i)
• Optical components Standard lens 1:1.6X, F=1.7~2.2, f=22~35mm, 1/2x1/2~4x4
Digital Zoom/Focus
Lens can be replaced, OneTouch change Lens
Optional Lens Short-focus lenses ,Telephoto lens, wide-angle lens
Throw Ratio 100" at 3.5~3.8m
Image Size (Diagonal) 32"~500"(Move Projection Distance Generated image size)
Projection Distance 1M ~15M (Depending on lens)
Lamp 350W USHIO high-pressure mercury lamp, AC, Replaceable Type
Lamp Life 4000 / 5000 Hours (Standard/Economy Mode)
• I/O Computer - 1 x VGA / Component Input
- 1 x VGA / Component Output
Video - 1 x YPbPr component video
- 1 x S-video (4-pin mini DIN)
- 1 x Video (YPbPr/CbCr)
Aduio Dual channel 2 x 3W
Control - 1 x RS232
- Infrared Remote Control
- 1 x RJ45 (Network)
- 1 x HDMI 1.3
• Packing Accessories Cable 1.5 m VGA Cable,1.5 m Power Cable;1.5 three-color audio and video cable
Other accessories Remote control, Product Manuals & Instructions (CD-ROM)
Lens cover, warranty card, certificate, etc.
Optional Accessories Replacement Lamp, Remote, Carrying Case
• Basic information Noise Level (STD/Bright) 31dB/28dB(Standard/Economy Mode)
OSD User Controls 18 Languages
Dimensions (W x H x D) 535 mm x 390 mm x 190 mm
Weight 11 kg only Projector, 15 kg with Packing
Power Supply AC Input 100-240 V, 50-60Hz, Auto-Switching
Power Consumption 490 Watts (Bright)
