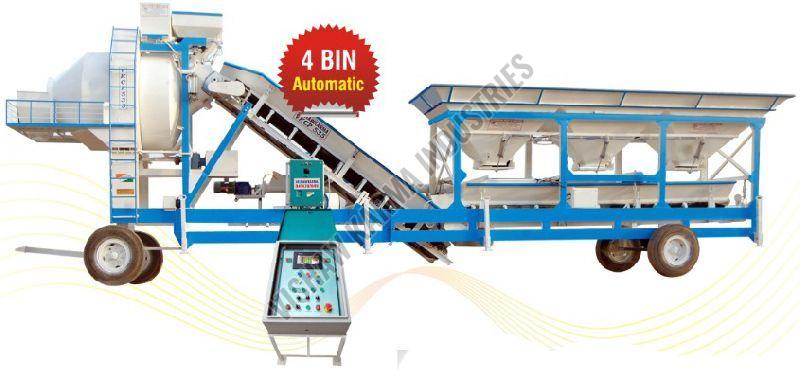

    VKCP 530-4 BIN Automatic Mobile Concrete Batching Plant

    VKCP 530-4 BIN Automatic Mobile Concrete Batching Plant

    Get Latest Price
    • MOQ1 Piece(s)
    • Hopper Cap. Each3 cum
    • Water Tank Capacity200 Ltr.
    • Vibrate Motor3 No. x 1/2 HP
    • Con. Motor (Gathering)5 HP
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Vishaw Karma Industriesvtrust
    location VPO Morjand Khari, Ganganagar, Rajasthan
    4.5/5fill iconfill iconfill iconfill iconhalf icon(2)
    View Number
    • calendar Member Since 9 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 08BFRPS6124J1ZT

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Total Height4350 mm
    • Output / Mix2000 Ltr.
    • Total Width2400 mm
    • Mixer TypeDrum
    • Con. Motor (Gathering)5 HP
    • Water Pump2 HP
    • Hopper Cap. Each3 cum
    • Vibrate Motor3 No. x 1/2 HP
    • Material Storage system3 Compartments
    • Water Tank Capacity200 Ltr.
    • Mixer Motor15 HP
    • Con. Motor (Slinger)7.5 HP
    • Concrete Discharge Height2.90 m
    • Admixture Pump0.5 HP
    • Tyres4 No.
    • Output Rate28-30 cum/hr.
    • Suggested DG Set62 KVA
    • Sand / Aggregate or1/3 Hopper or
    • Total Length12400 mm
    • Cement Screw Con. Motor10 HP
    • Air Compressor Motor2 HP
    • Cement Hopper Cap.1300 Kg.
    • Connected Power43.5 HP
    • Net Weight10.5 Ton Approx

    Features :

    • Fully automatic.
    • Available in 25 cum / 30 cum / 35 cum hr. Capacity.
    • Reversible non-tilting drum type concrete mixer.
    • Compact Design for easy transport & shifting by towing also.
    • Plant can be erected & commissioned within one hours.
    • Complete plant can be transported in two 25 feet trailer.
    • Speciality carbon steel casted gear ring & roller, so the machines show high mechanical performance.
    • PLC based control panel with integral computerized batch controller which accommodates different mix receipes.
    • Tow Bar Facility.
    • Fully automatic plant with electronic weighing of Agg. / Sand/ Water / Cement / ad mixer.
    • Plant only requires electric Power supply.
    • Includes printout & USB system.
    • Imported helical gear box.
    • Whole plant assembly on single chassis.
    • Digital load cell based material weighing system.
    • Cement feeding system through inclined screw conveyor.
    • Digital load cell based water feedingsystem.
    • Auto add mixture dozingsystem.
    • Gear ring & roller :Accurately machined with gear cutting operation supported by heavy duty twin roller guide.
