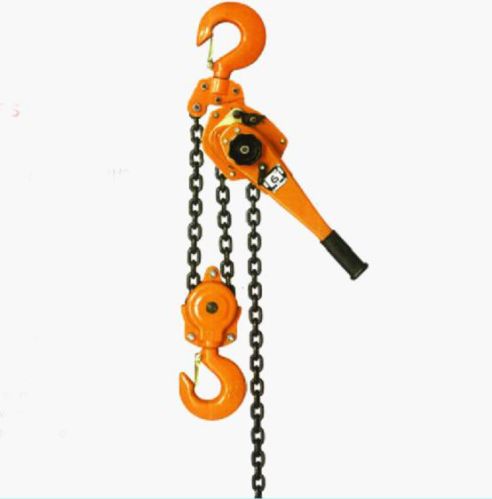

VL Lever Hoist Chain

Features It lifts weights according to the lever principle, and it must not be extended operating handle.In the operating process, the rest handle should be free follow-up but not be blocked. Please select appropriate ton hoist according to the load. Used to tighten the wire, lifting equipment and it is suitable for high altitude operation. Brake device adopts double pawl, so it is durable, safe and reliable. The handle is designed with bi-directional ratchet, the handle can be reciprocating operation during up and down. It is desighed with brake and clutch device, when there`s no load, the position will be in the middle. You can pull the chain by hand ,it will not have force, it can improve the efficiency of work. VT lever hoist specification: Capacity(T) 0.75 1.5 3 6 Standard lifting height(M) 1.5 1.5 1.5 1.5 Test load(T) 1.25 2.5 4.5 7.5 Hmin Headroom(hook to hook)Hmin 310 370 485 600 Full load hand force(N) 196 220 325 343 No.of load chain fall lines 1 1 1 2 Diameter of load chain 6.3 7.1 9 9 Net weight(KG) 7 11 20 30 Gross weight(KG) 8 13 22 35 .
