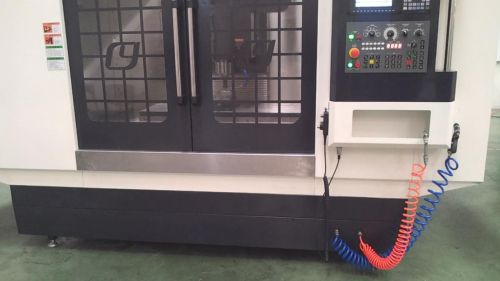

Vmc 650/850/855 CNC Vertical Milling Machine Supplier

We are offering VMC 650/850/855 CNC vertical milling machine supplier.
1.Max.load:600kg
2.Accuracy:0.003mm 0.005mm
3.Speed:8000rpm
VMC 650/850/855 CNC vertical milling machine supplier
1.Model: VMC650 VMC850 VMC855
2.System:MITSUBISHI -M70VA
FANUC 0i mate MD
3.Torque force of spindle:35/7.5 nm/kw
Specifications
Item Model Unit VMC-650 VMC-850 VMC-855
working tale size mm 420x800 500X1050 530X1000
X/Y/Z travel mm 650/400/480 800/500/550 800/500/700
Distance between spindle end and table mm 80-560 105-655 110-810
Distance between spindle center and column guide way mm 480 550 575
Maximum weight of working table kg 600 600 600
table-T-slot mm 3-18-135 3-18-150 5-18-100
X/Y/Z axis rapid feed mm/min 18000 18000 18000
three axis working rapid speed mm/min 8000 8000 8000
X.Y.Z axis screw mandrel size mm 3206 4010 4010
positioning accuracy mm ±0.005/300 ±0.005/300 ±0.005/300
repeat positioning accuracy mm ±0.003 ±0.003 ±0.003
spindle speed rpm 8000 8000 8000
spindle taper mm BT40/150 BT40/150 BT40/150
control system / MITSUBISHI-M70VA/FANUC0i-mate-MD
torque force of spindle motor nm/kw 35/7.5 35/7.5 35/7.5
torque force of X.Y.Z motor nm 13.7-47 20-50 20-50
pneumatic source requirement Kg/Cm2 6 6 6
power consumption kva 18 20 20
machine size mm 2300*2000*2500 2550*2200*2700 2550*2200*2700
machine weight kg 4500 4800 5800
We reserve the rights on the designing, colors,specification and termination of use of our products.Changes to these factors will not be notified.
Standard accessories:
Full closed guard Spindle air blast
Electrical box heater exchanger Rigid tapping
Belt drive Program storage
Cutting coolant unit Automatic lubrication system
Cutting air blowing device Horizontal bolts and pads
Axis extend guard Explosion-proof work light
Operation maintenance Manual Plug type hand wheel
DNC computer transmission line Tool box
3 axis Pretensioned Ball Screws
Warning light of three color
Special accessories:
Rotary table Spindle speed:10000/12000rpm
Automatic tool length measurement system bamboo hat type tool magazine
Spindle oil cooler Spindle central water discharge
Scraps conveyer Circular tool magazine
voltage stabilizer.
