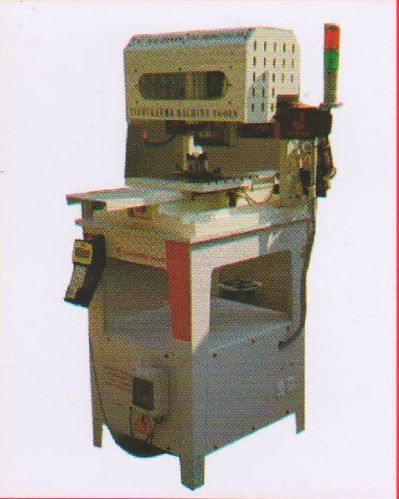

    VMT-S 300 CNC Engraving Machine

    • ConditionNew
    • QualityHigh
    • MOQAs Per Client Requirement
    • Model No.VMT -S 300
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location India, Canada, Nepal, Australia

    Vishvkarma Machine Tools, Ambala Cantt. Established in 1988, is a leading manufacturer of CNC Machine, Pantograph Machine. With over 25 years experience in this line, we are committed to producing....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 19 Years
    • building Nature of Business Retailer
    • gst icon GST No. 06AARPP9068Q1ZG

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    Vishvkarma Machine Tools, Ambala Cantt. Established in 1988, is a leading manufacturer of CNC Machine, Pantograph Machine. With over 25 years experience in this line, we are committed to producing only the finest products to our customers and many Industries are using our CNC Machines. It is and will continue to be our goal to provide you first class service in CNC Machine in both Domestic and International Markets.
    Machinery Set Up:

    • We have latest mother machinery as per the details given below:
    • Laser Cutting Machinery, laser cube cutting as well as laser sheet cutting.
    • Laser pipe Cutting Machine
    • Press Brake-9 Axis
    • Press Brake
    • Sheet Cutting Sharing Machine
    • CNC Turning Centre
    • Vertical Machine Centre
    • CNC4Axis
    •  Bed Milling Machine
    • Turret punch machinery
    • Bending Machinery, we can achieve whatever angle you want in accuracy like 0.05, and we have many equipments from, we
    • can achieve very good accuracy as per your drawing.
    • Kawasaki Welding Robots
    • Kawasaki Painting Robots



    Applications

    • 3D Sculpting
    • Engraving
    • Dies & Moulds
    • Mementoes
    • Gift Articles
    • Medals & Awards
    • Name Plates
    • Rotary Cams
    • Dials
    • Tool Room Parts
    • Milling


    Technical Specification

    DescriptionVMT-S 300
    X*Y*Z working area300 x 300 x 100 mm can be customized
    X StructureBall screw and linear rails
    Y StructureBall screw and linear rails
    Z StructureBall screw and linear rails
    Max. Consume Power3.5kw
    Max. Rapid Speed0-7500mm/min
    Max. Working Speed0-6000mm/min
    Spindle Power Motor1.5kw/2.2kw
    Spindle Speed0-24000rpm
    Working modeStepper
    Working VoltageAC220V/380V, 50/60Hz, 3PH
    Command CodeG Code (*uoo, *nc, *mmg, *plt)
    Operating SystemWhehong CNC Controller
    InterfaceUSB
    SoftwareArtcam , Work nc, Master cam
    Optional AccessoriesRotary Chuck Automatic Lubrication Pump
