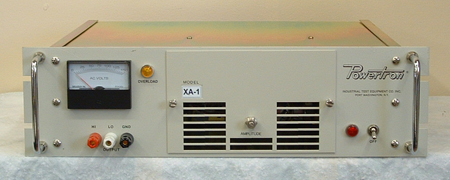

Voltage Mode Power Amplifiers

Output Circuit:
Isolated output transformer;
taps from 0-8 to 0-260V for small units
taps from 0-65 to 0 - 3000V for big units
Regulation: Adjustable to 0.1% line and load
Short Circuit Protection: Automatic reset thermostat
Frequency Response: Full power 45Hz-20KHz, reduced power 20Hz-40KHz
Distortion: 0.3% mid band
Volt Meter: Analog (not included in Model 80S)
Input Power: 115 or 230 volts 50 or 60 Hz for small unit, 208 3 phase 5060 Hz for big units, unless otherwise specified can easily be wire for 190, 225, 240, 380, or 450V; 5060 Hz.
Power Factor Range: +0.7 to -0.7 for full power; to zero @ reduced power
Dimensions:
Standard 19” rack by 5.25” by 14” deep for small units
Standard 14” rack by 21” deep for 1000P and 1500P Standard 17” rack by 21” deep for 2000P & 3000P
