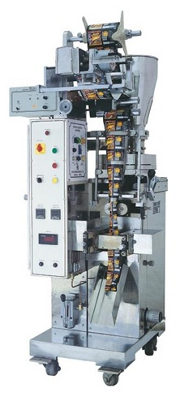

Volumetric Cup Filler

Get Latest Price

Power Consumption3 kW
Electrical Supply220 V, AC, Single Phase, 50 HZ OR 440 V, AC, Three Phase, 50 Hz
Packing FilmAny Heat Sealable Laminate
Sealing TypeCenter Seal
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location India only

View More Details

Send Enquiry

Company Information

Grace Food Processing & Packaging Machinery

New Friends Colony, Delhi

View Number

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1995

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Compressed Air6 CFM @ 6 Bar (Depending On Attachments )
Sealing TypeCenter Seal
Packing FilmAny Heat Sealable Laminate
Feeding SystemAuger Filler / Weigh Filler / Volumetric Cup Filler
Temperature ControllerPID
Additional AttachmentsBatch Cutting Device, Pneumatic Coding Device, Nitrogen Flushing
Main Motor1/2 H.P, AC Drive
Electrical Supply220 V, AC, Single Phase, 50 HZ OR 440 V, AC, Three Phase, 50 Hz
Roll Width120 mm - 450 mm
Power Consumption3 kW
Contact PartsFood Grand Stainless Steel SS 316 / SS 304
Machine Speed60-75 Pouch / Min ( Depends upon Pouch Size and product weight to be filled)

Manufacturer and exporters of variety of automatic Fill and seal machine, Automatic packing machine, Snacks Packaging Machine, Powder Packing Machine, Namkeen Packing Machine, Semi automatic packaging machines, automatic form fill machine, automatic flow wrap machines, auger fillers packaging Machines etc.

Model No. GTL-300-CLC (Cup Filler) – For Free Flowing Powder and Granules

Application: Tablets, Panmasala, Jaljira, Cereals, Tea, Detergents, Pharmaceutical Powder, Namkeen, Henna, pepper, spices etc.
Packaging Range:20 grams – 1000 grams

Model No. GTL-300-CLA (Auger Filler) – For Non- Free Flowing Powder and Granules

Application:Flour, Spices, Milk Powder, Cocoa & Coffee Powder, Besan, Haldi Spice etc.
Packaging Range:20 grams – 1000 grams

Model No. GTL-300-CLW (Weigh Filler) - For Irregular Flakes like Potato Chips, Kurkure Snacks

Application: Snacks, Dry Fruits, Sugar, Candy, Potato Chips etc.
Packaging Range: 20 grams – 1000 grams

Features	Advantages	Benefits
Intermittent Motion Machine	Efficient, effective packing	Savings on wastage
Machine is PLC controlled	Machine is centrally controlled.	System runs in Synchronization
Operator Friendly / Low Maintenance Machine	Easy to Operate / Less Servicing Required	High Run Time / Increased Productivity
Food Grade Stainless steel Contact parts	No rusting	Long Life, Hygienic Packing
Automatic pouch length Change mechanism	Automation	Length can be changed as requirement Less Changeover time, No change Parts
Pneumatic Coding Device (At an extra price)	To Print M.R.P, Month of Packing	Helps In Detecting Manufacturing
Batch Cutting Device	Cuts the Batch at Prefixed length	Ease of secondary packing
Customization (As per products)	Wide dozing system options	Can be used for various products thus -giving full Utility
