    Volumetric Filling Machine

    • Min Filling20ml
    • Production Capacity15-20 BPM
    • Air Required15 -20 CFM @ 6 -7 Kg Bar
    • Approx. Weight (Kgs)850
    • Supply TypeManufacturer, Exporter
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 11 Years
    • building Nature of Business Manufacturer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Max Filling150ml
    • Contact Parts MOCSS 304L/ SS 304
    • Approx. Dim. (mm)575 L x 660 W x 1500 H
    • Production Capacity15-20 BPM
    • Min Filling20ml
    • Manpower Required3
    • Air Required15 -20 CFM @ 6 -7 Kg Bar
    • Approx. Weight (Kgs)850
    • Power Required380 - 440v/ 3 Ph / 0.4 kW

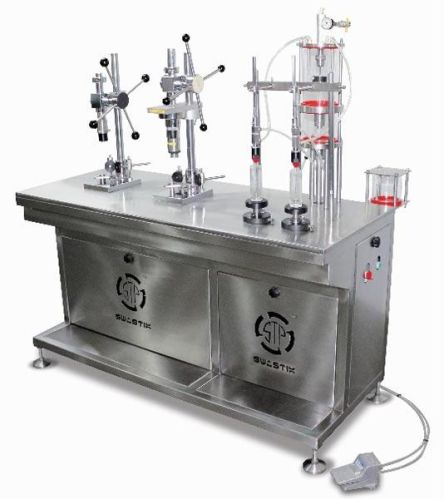

    We are offering swastik’s semi auto 2 head vacuumetric filling manual crimping & collar filling machine combo.
    Machine applications :
    1) perfume filling.
    2) low viscous liquid filling
    3) glass, plastic, hdp bottle crimping
    4) collar ring fitting
    5) storage of spray valves & collar rings
    machine operationdescription :
    place the empty bottles under the nozzle and let the bottles get filled by vacuum as per the setting.
    Place the filled bottles on lhs, place spray pump on it and place under the crimping head, rotate the knob for crimping action.
    Placed the crimped bottles on lhs, place collar (rings) on the outer side of spray pump, place the bottle under the fitting head and rotate the knob for fitting action.
    Now these bottles are ready for further processes.
    machine features :
    1) flameproof main motor (optional)
    2) 5 mins change over time
    3) easy to use & low maintenance
    4) flow regulator for filling control
    5) completely manual crimping & collar
    6) height adjustment of crimping & collar
    7) easily replaceable collet & pusher & holder of collar fitting
    8) storage for spray valves & collar rings
