Volumetric Liquid Filling Machine With Capping Or Plug Pressing

Get Latest Price

VVial Height :Sample or Size required*
Conveyor Height :800-850 mm
Rubber Stopper Diameter :any type of PP, ROPP, Screw Cap or Press type Plug can be applied
Syringe Fill Range:2ml to 10ml and 10ml to 50ml and 50ml to 100ml*
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

BROTHERS PHARMAMACH (INDIA) PVT. LTD.

GIDC, Rajkot, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1965

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Speed :Max. 40 per minuite
Electrical :220 VAC Single Phase Power Supply (50 Hz)
Rubber Stopper Diameter :any type of PP, ROPP, Screw Cap or Press type Plug can be applied
VVial Height :Sample or Size required*
Conveyor Height :800-850 mm
Vial Diameter :Sample or Size required*
Fill Range :10ml to 100ml with the help of Change Parts / Syringes
Power :2.0 H.P.
Syringe Fill Range:2ml to 10ml and 10ml to 50ml and 50ml to 100ml*
Accuracy :+/- 1% Depending on Liquid with Single Dose
Overall Dimensions :1800 mm (L) x 850 mm (W) x 1400 mm (H)

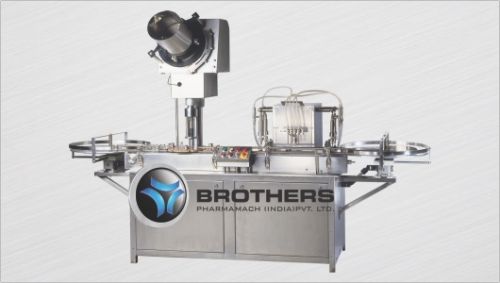

LIQFILL-40ic - Volumetric Liquid Filling Machine with Capping or Plug Pressing

The Automatic Twin Head Volumetric Liquid Vial/Bottle Filling with Capping/Plug Pressing Machine Model LIQFILL-40ic is suitable for Vials and Round or Flat shape Bottles with maximum speed of 40 Products per minute.

The Machine can give Maximum speed of 40 Bottles per minute depending on nature of Liquids, Bottle Neck Diameter, Fill Volume and type of Capping or Plugging. Machine can be supplied with Automatic Single Head PP/ROPP/Screw Capping or Pneumatically operated Plug Pressing System.

Machine construction in fully Stainless Steel finish including machine frame structure. Machine with optional built-in Turn Tables at In-feed with individual drives to match the speed of Filling and Capping/Plugging for smoother operation. All parts coming in contact with Liquids are made from SS 316 Materials.

Note: Turn Table is only suitable round bottles only. In few cases due to the design and shape of plug it may not possible to offer automatic plug/cap dispensing on bottle and operator may have to feed/place the plug/cap manually on bottle and machine can do further process of automatic capping or pressing.

SPECIAL FEATURES :

No Product - No Fill System, No Product - Machine Stop System
No Cap/Plug - Machine Stop System
All contact parts are made of SS 316 material with easy removal system for Auto-Claving/Sterilization/cleaning
Machine construction in SS 304 material
Diving Nozzle for Foam free filling
On Line Filling and Capping/Plugging Operation
Very High Fill Accuracy
Automatic Infeed and Exit of Vials/Bottles including Capping
Minimum Change Over time
Built-in A.C. Variable Freq. Drive System
