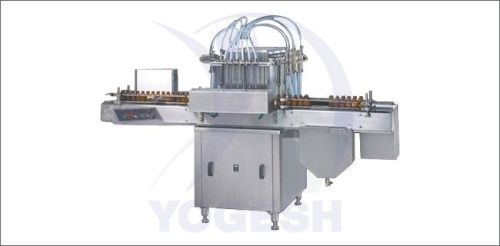

VOLUMETRIC VIAL BOTTLES FILLING MACHINE

Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Automatic volumatric vial bottles filling machine is working on the volumetric principle. The machine consists of diving nozzles. The machine is made up of stainless steel matt finish body. It is....

View More Details

Send Enquiry

Company Information

Yogesh Pharma Machinery Pvt. Ltd

Vatva, Ahmedabad, Gujarat

View Number

Member Since 22 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Automatic volumatric vial bottles filling machine is working on the volumetric principle. The machine consists of diving nozzles. The machine is made up of stainless steel matt finish body. It is compact and versatile.

HOW IT IS SIMPLE AND QUICK :

There is a twin pneumatically operated stopper system with feed below and filling nozzles. The conveyor belt moves the container to the filling nozzles. The reciprocating nozzles and stopper system can match for centering of the container below nozzles, to avoid the wastage of the liquid. The nozzle goes upwards from the bottom level to minimize the foaming. The fill size can easily set with a hexagonal bolt, below the syringe.

THE FEATURES :

Very much accurate, ±1% filling accuracy.
Vibration free construction
Error code display
The platform is provided with drain tray round it, and drip tray under the conveyor
The perfect pneumatic arrangement for bottle stopping
The conveyor gear box, motor and pneumatic cylinders are provided with the safety guard.
To prevent from the short circuit and over load, the MCB is given.
For the voltage fluctuation and short circuit in A/C frequency drive there is inbuilt protection, with machine
No bottle no filing system
Trouble free performance with low maintenance
Easy control panel
Low friction wear surface, smooth and noiseless conveying.
It takes minimum time to change the apparatus
The bottle height gauge is adjustable for the quick and easy setting
The height of the conveyor belt is adjustable to align with other machine of the line
No container no cap arrangement
The single A/C drive is synchronizing the platform turret and capping bowl, conveyor and star wheel.
The conveyor, star wheel and platform turret is synchronized by the single motor.
The S.S. matt finished body
S.S. cladding or hard chrome plating of all exposed parts.
The UHMW-PE guide profile for low friction wears surface. It is self lubricating leads smooth and noiseless conveying.
Depending on the gauges and size of caps, the sealing pressure can varied
Noise level and power consumption are very low

SPECIAL FEATURES :

The washing system of automatic chain for the conveyor belt
There is afloat tank( holding tank) with or without stirrer
In-built pre-inspection
Nitrogen flushing
Acrylic cabinet
The cover of the conveyor is of acrylic

UTILITY REQUIREMENT :

Electrical Supply : Three Phase + Neutral + Earthing
Electrical Load : 2 KW
Air Pressure : 6 bar pressure 0.5 CFM

TECHNICAL SPECIFICATION :

Model	APM-AVF-100	APM-AVF -150	APM-AVF -200
Output/Hour	2400 to 6000*	3600 to 9000*	5000 to 12000*
Direction of Movement	Left to Right
Number of head/syringe	4 Nos.	6 Nos.	8 Nos.
Fill Size***	5 ml to 1000 ml
Electrical Specification** Main Machine Main Machine	1 HP /415 Volts / 50 Hz. (1.5 HP if maximum volume is 1000 ml in single doze) 0.5 HP / 415 Volts / 50 Hz.		1.5 HP /415 Volts / 50 Hz. (2 HP if maximum volume is 1000 ml in single doze)
Height of Conveyor	860 mm to 910 mm adjustable.
Machine Dimension	2135 mm (L) x 1150 mm (W) x 1610 mm (H)		2135 mm (L) x 1350 mm (W) x 1610 mm (H)
Case Dimensions	2350 mm (L) x 1350 mm (W) x 1650 mm (H)		2350 mm (L) x 1550 mm (W) x 1650 mm (H)
Net Weight	600 Kgs.	700 Kgs.	850 Kgs.
Gross Weight	850 Kgs.	950 Kgs.	1100 Kgs.
Change parts required	(A) Syringes. (B) Nozzle (C) Inlet & outlet hose pipe

INPUT SPECIFICATIONS

Container Neck Diameter**		Minimum 22 mm***
Container Size**	Round Shape	(A) Ø 15 mm to Ø 50 mm * (B) Height 30 mm to 180 mm* (Height option for other bottle height available)
Container Size**	Flat / Square	(A) 15 mm to 100 mm (Lenght) (B) 10 mm to 50 mm (Width) (C) 58 mm X 240 mm (Height option for other bottle height available)
