Chrome Finish Battery Stainless Steel Vortex Flow Meters, Operating Type : Manual

₹ 15,000 - ₹ 25,000 / Piece

MaterialStainless Steel
Driven TypeBattery
FinishingChrome Finish
Operating TypeManual
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 3 Years
Nature of Business Manufacturer
GST No. 08AAQCM3918C1ZD

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialStainless Steel
Driven TypeBattery
FinishingChrome Finish
Operating TypeManual
Number Of FlowerVortex Flow Meters
Country of OriginIndia
Accuracy±1.0% (Flange/Wafer/Thread/Tri-clamp) ±1.5% (Insertion Type)
Nominal Pressure :Flange DIN PN10/PN16/PN25/PN40 JIS10K/20K/30K/40K ANSI 150#/300# Wafer Thread Tri-clamp Insertion 4.
SizeDN15-DN300 (flange/wafer Type) DN80-DN2000 (insertion Type) DN15-DN100 (thread/sanitary Type)
Temperature-40～＋250℃
Signal Output4-20mA, Pulse
Measured MediumLiquid, Gas, Steam
Flow RangeLiquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s

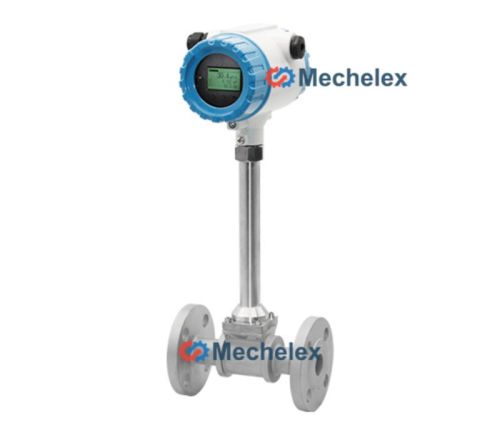

ME2400 Vortex Flow Meter is a type of flow meter that utilizes the principle of Kármán vortex street to measure the rate of fluid flow. The meter consists of a sensor which is mounted in line with the pipeline and when the fluid moves through the meter it creates a series of vortices behind the sensor. These vortices are measured by the meter and the frequency of the vortices is used to calculate the rate of fluid flow. Mechelex Instruments Vortex meters are often used to measure steam, gas and liquid flow and they are more accurate than other flow measuring devices such as turbine meters.
