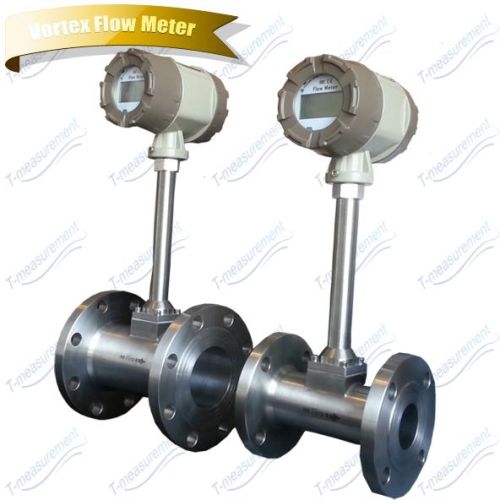

Vortex Flow Meters

₹ 91 / 1000 1000 Piece

MOQ1 Piece(s)
OutputPulse,4-20mA
Nominal DiameterDN15,20,25,40,50,65,80,100,125,150200,250,300 mm
sensor hosting & flange's MaterialsSS304
Inlet run≥10DN
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

OutputPulse,4-20mA
Outlet run≥5DN
Pressure1bar / 14.5 psig
Power supply24VDC/Lithium Battery Power;
Pipe SizeDN15-DN300mm
Ambient temperature Standard(with aluminum converter housing)-10~+55 c
sensor hosting & flange's MaterialsSS304
Inlet run≥10DN
Application range(1)Gas;(2)Liquid;(3)Steam
Nominal DiameterDN15,20,25,40,50,65,80,100,125,150200,250,300 mm
Measurement RatioStandard 10:1

Introduction
temgb series vortex flow meters are designed for measuring the volume mass flow of liquids,gases and steam based on karman vortex principle.
Parameters of vortex flow meter
application range (1)gas;(2)liquid;(3)steam
ambient temperature standard(with aluminum converter housing): -10~+55 c
pressure 1bar 14.5 psig
accuracy for liquid:1.0% of rate
for gas and steam:1.5% of rate
measurement ratio standard 10:1
nominal diameter dn15,20,25,40,50,65,80,100,125,150200,250,300 mm
materials sensor hosting & flanges :ss304
converter housing:
polyurethane coated die-cast aluminum
connection flange: dn15-dn300
wafer: dn15-dn300
primary measured value flow rate
electrical conductivity >=300 u scm
installation take care that flow sensor is always fully filled
flow direction forward
arrow on flow sensor indicates flow direction.
Inlet run ≥10dn
outlet run ≥5dn
power supply n type: pulse output without local display
a type:4-20ma output without local display
b type: local display; lithium battery power;
no output;
c type: local display;24vdc power ;
4-20ma output
