Contact SupplierWe offer volumetric water pumps.
Details:
operating conditions:
1. Liquid temperature up to 60c
2. Ambient temperature up to 40c
3. Total suction lift up to 8m
4. Continuous duty
motor
1. Two-pole induction motor(n=2900r. P. M. )
2. Insulation class b/f
3. Protection ip44
material
1. Pump body: cast iron
2. Motor support: cast iron
3. Impeller: brass
4. Shaft with rotor: hi-cr plated 45# steel/stainless steel
5. Mechanical seal: carbon/ceramic

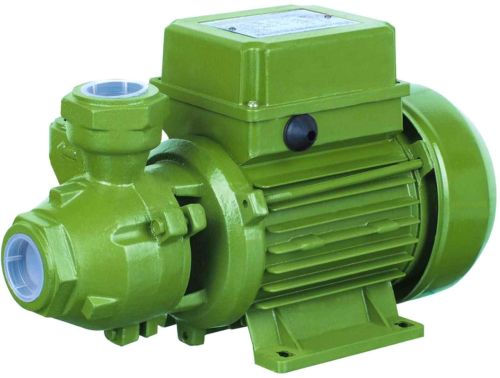

end-suction vortex pump
model: qb-60/70/80
power: 0.37-0.75kw
intel/outlet: 1" *1"
flow: 40 - 60l/min
head: 40 - 70m
max. Suct: 8m
220v/50hz, 230v/50hz, 110v/60hz, 115v/60hz, 127v/60hz & 110v/220v dual voltage models are available on request
