50Hz Vpl Electronic Circuit Simulation Software, Input Voltage : 26v

VPL Electronic Circuit Simulation Software FEATURES

• It runs on any machine supporting Java 5 or later; special versions are released for Mac  OS X and Windows. The cross-platform nature is important for students who have a variety of home/dorm computer systems.

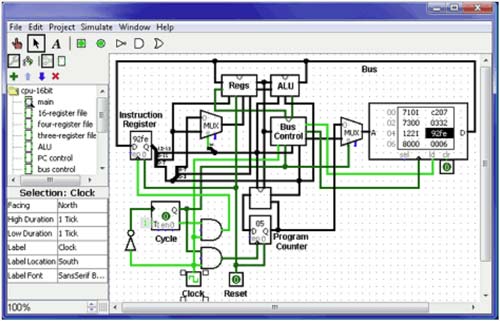

• The drawing interface is based on an intuitive toolbar. Color-coded wires aid in simulating and debugging a circuit.

• The wiring tool draws horizontal and vertical wires, automatically connecting to components and to other wires. It's very easy to draw circuits!

• Completed circuits can be saved into a file, exported to a GIF file, or printed on a printer.

• Circuit layouts can be used as "sub circuits" of other circuits, allowing for hierarchical circuit design.

• Included circuit components include inputs and outputs, gates, multiplexers, arithmetic circuits, flip-flops, and RAM memory.

• The included "combinational analysis" module allows for conversion between circuits, truth tables, and Boolean expressions.

  Note: Specifications can be changed, added or subtracted without notice in our constant efforts for improvement.
