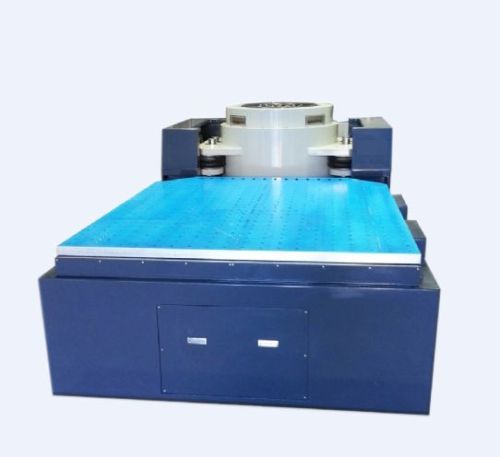

VS-16000VH Vibration Test Equipment

Horizontal slide200 * 200cm 690Kg
Vertical platform150 * 150cm 600Kg
Temperature range-40 ℃ ~ 150 ℃
Inner box100 (W) * 85 (D) * 100 (H) cm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Maximum acceleration100G
Temperature range-40 ℃ ~ 150 ℃
Maximum speed2.0m / s (peak)
Maximum displacement76mm (peak)
Frequency range1-2100Hz
Resonant frequency500Hz or more
Horizontal slide200 * 200cm 690Kg
Maximum force160KN
Vertical platform150 * 150cm 600Kg
Resonant frequency2000Hz or more
Inner box100 (W) * 85 (D) * 100 (H) cm

Vibration test equipment: test by the digital controller to control the power amplifier to drive 160KN vibrator, the test object locked & fixed to the top of the table, and through the vertical platform or horizontal slide undergo separately up and down, back & forth, around the three-axis vibration test.

For The composite vibration test, we can proceed with our unique technology and design of the combination of temperature box and vibration machine.
