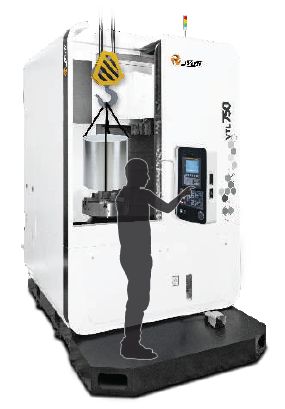

VTL 500-750 CNC Low Precision Turning Center

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All Countries Except India

VTL Series machines are specially designed for heavy and larger diameter component machining of heavy engineering industries like railways, heavy automobiles, oil &natural gas, compressor, power,....

View More Details

Send Enquiry

Product Details

VTL Series machines are specially designed for heavy and larger diameter component machining of heavy engineering industries like railways, heavy automobiles, oil &natural gas, compressor, power, earthmoving and other with addition to components like valves, pumps, motor bodies, gear blanks and components from various subcontracting industries.

Features :

Box type design for heavy duty & dynamic load cutting
High glade C.I. thermally stable bed & column
Broad hardened and ground guide for rigidity at greater extension of turret
Rigid structure with wider working area &
Efficient Chip Disposal system
Bi- Directional Servo Tool Turret
Easy-to-operate operator panel for operator friendliness
Hydraulic Counter Balancing system
Ergonomic design for easy component loading / unloading
Live Tool Turret option available for turning & milling in single set-up

3-SIDED ADJUSTABLE SUPPORTS FOR AXIS : 3-sided support on both X & Z - Axis helps maintaining tolerance between axis & guide-ways during reversal movement delivering long term accuracy and durability.

Specifications

	VTL 500 5A	VTL 500 5B	VTL 500 7A	VTL 500 7B	VTL 750A	VTL 750B
Chuck Size	315 mm	400 mm	315 mm	400 mm	400 mm	530 mm
Max. Turning Dia.	500 mm	500 mm	500 mm	500 mm	750 mm	750 mm
Max. Turning Hieght*	500 mm	500 mm	750 mm	750 mm	750 mm	750 mm
Travel (X / Z Axis)	265 / 500 mm	265 / 500 mm	265 / 750 mm	265 / 750 mm	400 / 750 mm	400 / 750 mm
Rapid Feed (X / Z Axis)	20 m/min	20 m / min	20 m/min	20 m / min	20 m / min	20 m/min
Spindle Nose	A2-8	A2-11	A2-8	A2-11	A2-11	A2-15
Spindle Power - Fanuc	18.5 / 15 kW	22 / 18.5 kW	18.5 / 15 kW	22 / 18.5 kW	22 / 18.5 kW	22 / 18.5 kW
Spindle Power - Siemens	27.8 / 18.5 kW	27.8 / 18.5 kW	27.8 / 18.5 kW	27.8 / 18.5 kW	27.8 / 18.5 kW	46.5 / 31 kW
Spindle Speed	2500 rpm	2000 rpm	2500 rpm	2000 rpm	2000 rpm	1200 rpm
Gearbox	Opt.	Std.	Opt.	Std.	Std.	Std.
Max. Boring Bar Dia.	50 mm	50 mm	50 mm	50 mm	60 mm	60 mm
Turre	8 St. Servo	8 St. Servo	8 St. Servo	8 St. Servo	8 St. Servo	8 St. Servo
