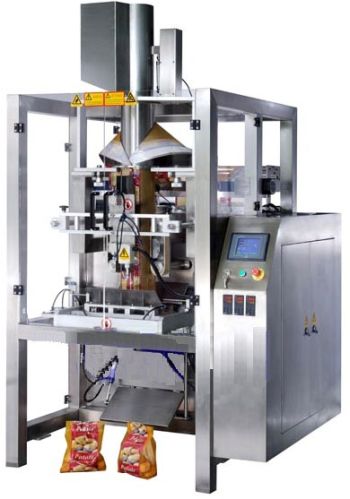

VU Series Vertical Packing Machine

Supply TypeSupplier
Preferred Buyer Location All over the world

We are the one stop destination for availing top quality VU Series Vertical Packing Machines. They are designed for handling PE mesh film to make pillow or gusset bags, suitable for packing fresh....

View More Details

Send Enquiry

Product Details

We are the one stop destination for availing top quality VU Series Vertical Packing Machines. They are designed for handling PE mesh film to make pillow or gusset bags, suitable for packing fresh vegetable and fruits such as potato, onion, orange, apple, cabbage, pea, carrot, capsicum, pear, lemon, grapefruit, kiwi fruit, etc.

Features

Full stainless steel version and Mild steel painted version for selected
PLC controller & touch screen interface insure simple operation
Photo sensor for automatic tracking eye marks
Film material : PE-Net, Net-film combination etc
Bag style : Gusset bag, Gusset bag withÂ handle holes

Technical Specifications

Model	VU-620	VU-800	VU-1000	VU-1200
Frame Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Film Width	Max. 620mm	Max. 800mm	Max. 1000mm	Max. 1200mm
Bag Width	110-300mm	160-385mm	240-480mm	290-540mm
Bag Length	100-380mm	100-480mm	100-600m	100-800mm
Packing Speed	5-20bags/min	5-15 bags/min	5-15 bags/min	5-12 bags/min
Air Request	0.36m³/min 0.6Mpa	0.4 m³/min 0.6Mpa	0.6 m³/min 0.6Mpa	0.8 m³/min 0.6Mpa
Voltage	220V/50hz	220V/50hz	220V/50hz	220V/50hz
Power	3kw	4kw	5kw	6kw
Dimensions	1600x1260x1800mm	1700x1500x2200mm	2170x1780x2780mm	2170x1780x3040mm
