Electric Vxdiag Nano

VXDiag VCX Nano for Car Scanner Introduction:

VCX is designed on the basis of the latest automotive international standards so that it can support many professional automotive diagnostic applications, including the original and third parties.

Top 8 Reasons to Get VXDiag Diagnostic Tool:

• Support Latest software version of specific Vehicle Brand
• Support original software
• Operating system: Windows 7 PRO, Windows 10 PRO (Recommend)
• Software in multi-languages: Chinese, English, French, Italian, Spanish, German, etc.
• Compatible with varieties protocols. Can be very easy to connect various automotive bus to a PC
• Small size, easy to carry and convenient for use.
• Supports OEM from year 2005 to 2022
• Run faster than Mini VCI

VCX NANO Software Features:

• Providing drivers consistent with international standard SAE-J2534 / SAE-J2534-1;
• VCX is a standard PassThru programming tool, which can do online ECU programming;

VXDIAG VCX NANO OBD2 Scanner Hardware Features:

• Diagnostic hardware uses a dual-core processor is automotive-specific level, compliant with all vehicles protocols.
• Diagnostic mux can meet international standards; can be flexibly configured communication port, less connectors, compatible with most vehicles diagnostic socket.
• Connectors and connecting cables are more reliable and convenient for the self-determination design.
• The hardware meets European CE and American FCC standards.
• Firmware can be updated, for continuous improvement.

VXDIAG Toyota Interface Key Features:

• Fully compatible with SAE J2534;
• Especially for cars, and all vehicles protocols are compatible with dual Cell processors;
• Design adapters and cables with self-determination;
• Fits CE and FCC hardware;
• Firmware can be updated;

PC to vehicle interface:

• Fully compatible with SAE-J2534-1 & SAE-J2534-2.
• ECU diagnosis and reprogramming, same as the original tool.
• Supports third party and OEM diagnostic application.

PC Interface:

• Support USB2.0 high speed connection.
• Support Bluetooth 2.0 wireless connection.
• PC configuration tool, detect connection and automatically update firmware.

Vehicle Interface:

• Hardware integrated as J-1962 OBD-II connector, connect with vehicles without cable.
• Support the following protocols: ISO9141(K-Line) - ISO14230-2(K-Line) - ISO15765 (CAN) - SAE-J1850 PWM (Ford SCP) - SAE-J1850 VPW(GM Class2) - Single Wire CAN (GMLAN).
• Support 4 CAN, 3 High Speed CAN and Single Wire CAN.
• Programming voltage: 5V~20V FEPs output.
• Support multi-channels work continuously, for example: 2 wire CAN or K-Line work at same time.
• Large memory to increase date throughput, 32KByte can be reached by single transfer.

Package List:

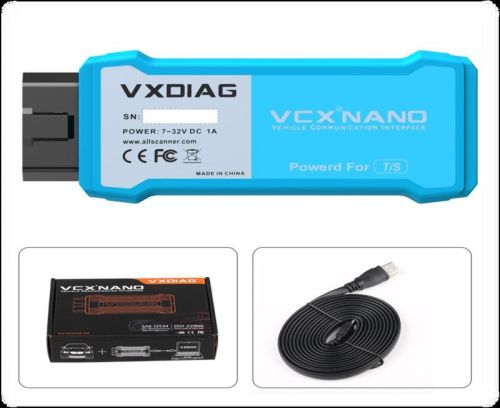

• 1pc x VXDiag vcx nano diagnostic scan tool
• 1pc x USB communication cable
•  Weight: 0.2KG ( 0.44LB )  Package size: 17.5cm*5cm*9cm ( Inch: 6.89*1.97*3.54 )
