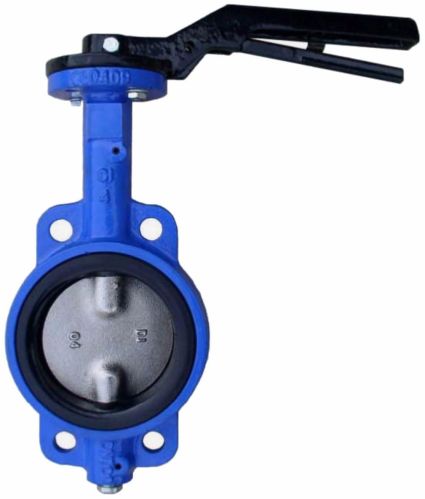

We are offering wafer butterfly valve without pin.centerline resilient seated butterfly valves without pin
type: wafer type
structure feature: centerline design, double shaft & without pin
design: mss sp-67, bs5155 and api 609
connection standard: ansi, din, bs & jis
working pressure: pn0.6mpa to pn1.6mpa
size range: 1½" to 48"
operator: lever, worm gear, pneumatic & electric actuator
materials of main part are as follows:
body: cast iron, ductile iron, astm a351 cf8, cf8m; cf3, cf3m, astm a216 wcb
disc: ductile iron, stainless steel: 304, 304l, 316, 316l; al-bronze
seat: nbr, epdm, neoprene, ptfe, viton
shaft: stainless steel: 316, 304 410, 416
o-ring: nbr, epdm, neoprene
bushing: ptfe.
