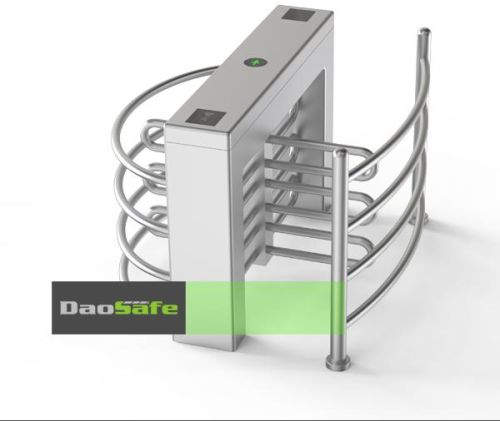

Waist High Turnstile With Ir Sensor and Alarm

We are offering waist high turnstile with ir sensor and alarm
(1) waist high turnstile easy to install, use and maintain.
(2) waist high turnstile direction can be set as single-direction or bi-direction.
(3) arms auto open when power off, complying with fire safety requirements.
(4)waist high turnstile can be integrated with magnetic card, barcode scanner,
counter, swallow machine, token accepter, and fingerprint machine and so on by standard electrical interface.
Waist high turnstile with ir sensor and alarm
item: description:
framework: 304 (standard)
thickness of ply: 1.2mm (standard)
dimensions: (l)1600* (w)280*(h)1150 (mm)
finishing: brushed (standard) fingerprint processing
pass width: �550mm
weight: 100kg
operation direction: single direction bi-direction
power voltage: ac220v +- 10v 50hz
ac110v +- 10v 60hz
work environment: indoor outdoor
pass rate: 35 personmin
power consumption: 40w24v
operating temp.: -15� ~ 60�
operating humidity: 0 ~ 95% without concretion
emergency: automatic arm open
input: 12v level signal or pulse wide>100ms
waist high turnstile with ir sensor and alarm
(1)electromagnet lock, photoelectric unlock, long service life, high operation dependability and fast response.
(2) the whole system runs smoothly, low noise, no mechanical impact.
(3)waist high turnstile self-test function, when power on, system restoration automatic.
(4)waist high turnstile working modes selectable: bi-direction card reading;
one direction cards reading and another no reading; one direction card reading and
another freely. Working modes can be set in the control panel.
(5) when power off, waist high turnstile arms will open automatically, to meet the
special needs of users and fire safety requirements.
Company name: daosafe technology co., ltd.
