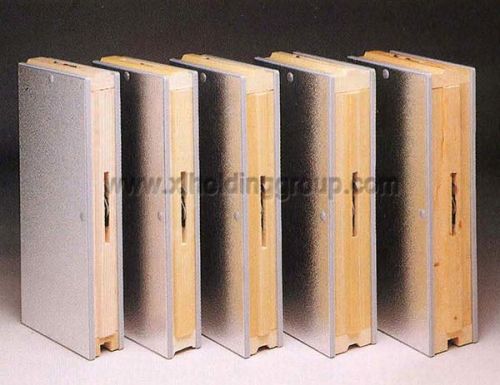

Walk-in-Cold Room PU Sandwich Panel

Walk-in-Cold Room PU Sandwich Panel, we offer, is reckoned the finest insulated panel that is incorporated with innovative features that help it to get by the task effortlessly and efficiently. The panel fares better in energy conservation as well. Its design is highly flexible and aesthetically appealing. We are emerging as the promising Manufacturer, Exporter, and Supplier of Walk-in-Cold Room PU Sandwich Panel from China.
Panel details :

• Panel width : 960 and 1000mm
• Panel length : 12,000mm
• Steel thickness : 0.4/0.5/0.6/0.8mm
• Regular steel sheet color code : RAL 9002 (grey white)
• PU density : 40 ± 2kg/m3
• Heat transfer coefficient : 0.024W/m * k
• Bending strength : 331MPa
• Fire rating : B2
• Surface of panels : Can choose various type of surface materials
• Standards : JB and T6527 to 2006

Cold storage panel option (by various materials) :

• Stainless steel
• Painted galvanized steel
• Galvanized steel

Number base plate THK and applicable temperature range :

• 50mm high temperature (5^OC or above)
• 75mm medium temperature (-5^OC or above)
• 100mm low temperature (-30^OC or above)
• 150-200mm ultra low temperature (-45^OC or above)

Product description :
Walk in freezer size and temperature can be made according to customer's requirements polyurethane panels are used for enclosing structures, which has good heat insulation and high intensity core is high rigid polyurethane and external is color steel or stainless steel can reduce heat transmission caused by different temperature between internal and external and so maximum efficiency of freezing and refrigerating systems. Scientifically design and convenient use and it has become material for lower construction cost
Applications :

• Using 100% polyurethane insulation panel, density about 40-45kg/m3 and with gasket with flame retardant
• Food (meat, vegetable, fruit, dairy and drink), medicine, chemical and electronics
• Materials : Polyurethane and metal sheet metal sheet: it is can be with painted steel sheet and stainless steel sheet for choice
• Electric heating wire around door frame to void icing
• Safe door knob inside
• Positive plastic seal fixed to door to avoid cooling air losses
• Can do customized dimension according to customer's requirements
• Access to all leading cold room refrigerators brands and can offer independent advice and recommend right equipment to meet your business requirements
