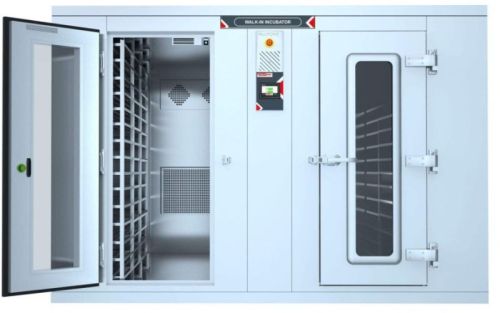

Walk-in Incubator Cooling and Heating

Incubator Is a device in which the incubation process is done, an enclosure conditioned to a predetermined temperature to provide and maintain an artificially created optimal conditions for growth of microbial culture.

Incubation is a process – a period of time in which temperature and other environmental variables are provided at a desired temperature level for the growth and development of microbial culture.

Every organism has an incubation period for its growth and development. If incubation is not provided it will result in degenerated the growth of an organism, therefore incubation is an important aspect for the proper growth and development.

Incubator those works at low temperature are used for “incubation” of biochemical reactions

Industries like pharmaceutical, research laboratories, agriculture, Food & beverages requires a Cooling Incubators

Allyone’s top of the line Cooling Incubators are the most preferred choice to maintain accurate temperature & its uniformity throughout the chamber for incubation where high degree of constant temperature accuracy is required.

Incubators are mainly used for the growth & storage of bacterial cultures, Media Preparation, gentle incubation & conditioning and other purposes.

*Custom built Chambers are available in any dimensions and capacities.

Standard Chamber Features & Provisions:

Construction: PCGI/SS 304/SS 316 Tongue & Groove type panels with PUF Density of 40Kg/m³ with thickness of 80 mm.

Sample Storage:

1. Racks: Heavy Duty SS 304 Frame secured strongly to chamber walls for strength.
2. Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations.

Doors: PUF Insulated External doors mounted with imported hinges & locks, Inner glass doors with latches. Door frame is secured with a silicone gasket on the entire perimeter to ensure an air tight, leak tight chamber.

Door Operation: Passcode protected door operation from software & HMI

Control System:

1. Ergonomically designed Control Panel.
2. Ferrule printed wiring.
3. Advanced PLC Program with built in processor-based Auto Tuning.
4. 4.3″ HMI Color LCD Display.
5. Built in Redundancy & Safety.
6. Advanced High Accuracy “Transmitter based sensors” with output of 4-20 mA.

Temperature Control:

1. Efficient, Reliable, Time tested & Trustworthy Refrigeration Design.
2. Built in redundancy with PLC based Auto Change Over during power outage or component failure
3. PLC Controlled “U” Shaped SS Air Heater Banks.

Optional Backup System: PLC based Auto Changeover Backup system for Refrigeration.

Safety: Dedicated Thermostats for all key points: Chamber High Temperature, Utility High Temperature

PLC Safety Cut Off Temperature: High, Higher & Low, Lower Safety Cut Off.
