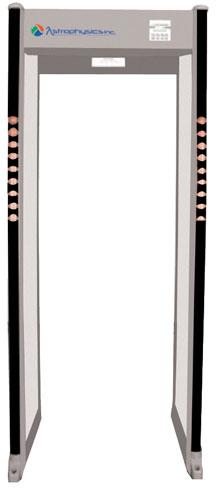

Walk Through Metal Detectors, Brand Name : APY

Enhanced pinpoint detection provides the highest performance standard for safety today.
the wt2000, with enhanced multi-dimensional v-coil design, provides superior detection of guns, knives and other flat and rod-shaped weapons, regardless of archway location.
enhanced circuitry with advanced dsp technology locates smaller objects, hard-to-find floor-level weapons, and moving targets regardless of speed.
zone adjustment enables maximum detection regardless of environmental challenges.
it is enhanced pinpoint detection provides the highest standard for safety for these applications:
• airports
• schools
• courthouses
• correctional facilities
• event security
• nuclear facilities
• transportation terminals
• loss prevention
• corporate security
technical specifications
operating temperatures
-4°f (-20°c) to +158°f (70°c)
humidity
to 95% non-condensing
power
100 to 240 vac, 50/60 hertz, 5 watts. Power supply meets ul, csa, tuv and vde standards
weatherproofing
meets ip 31, iec standard: “degrees of protection provided by enclosures,” cei 529.
Foreign objects protection standards
all settings are secured with a physical key lock and two levels of access codes
tamper-proof
dual-level access codes required to set all sensitivity settings and detection programs.
Construction
attractive scratch-resistant laminate with resilient end caps. Heavy-duty aluminum.
Control output
solid-state switches (low voltage ac or dc) for operating external alarms and control devices
traffic counter
counter tracks the number of patrons that have passed through the detector, the number of alarms, and calculates an alarm percentage
synchronization
dual channel and dep circuitry allow several units to operate simultaneously in close proximity to one another
interference suppression
built-in circuitry eliminates potential ellectrical interference
calibration
fifteen (15) independent programs designed to meet all installation-specific requirements including the new tsa enhanced metal detector (emd) system requirements for all u.s. Airports
self-diagnostics
self-test of all systems is automatically performed at power up. Any failure or problem is reported on lcd display.
Alarm
audible tone and adjustable volume. Bright red led visuial alarm
target pinpointing lights
thirty-three (33) distinct pinpont zones are displayed with two (2) independent columns of leds located on exit side of unit. International wait/ proceed symbols located on entrance side.
Program level
twenty (20 )standard programs to fulfill various security applications.
Dimensions
interior: 58.4 cm x 76 cm x 203 cm
(d x w x h) 23” x 30” x 80”
exterior: 58.4 cm x 88.9 cm x 246.4 cm
(d x w x h) 23” x 35” x 87”
shipping: 16.5 cm x 90.1 cm x 234 cm
(d x w x h) 6.5” x 35.5” x 92”
weight
net weight: 64 kg (141 lbs)
shipping weight: 74 kg (163 lbs)
