Walker Kettle Single Motion 100 GAL

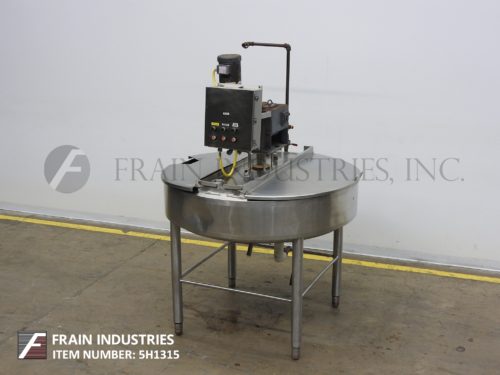

Walker, 100 gallon capacity, 304 stainless steel jacketed cooker cooler. Vessel dimensions: 54" diameter x 20" deep with a 13" straight wall and cone bottom. Equipped with lift up covers, 3 Hp bridge mounted scrape agitator, 12" x 7" baffle, thermowell and 3½" OD 3" ID seated bevel style bottom discharge with 27" ground clearance. Control panel with push button start stop. Mounted on (4) tube legs. Top Ports: (1) 3½"OD 3"ID Seated Bevel (1) 1" NPT Jacket Ports: (2) 1½" NPT (2) 1" NPT MAWP: 100 PSI @ 250°F
