Walkie Reach Stacker

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

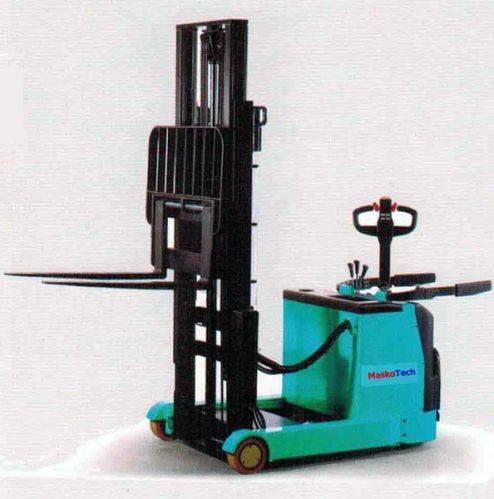

We bring forth a compact design Walkie Reach Stacker that is widely used for stocking different types of goods in various small scale and large scale industries. Our Walkie Reach Stacker is known for its operation efficiency and excellent load capacity, i.e., 1300 kgs. Walkie Reach Stacker is easy-to-operate as it is run by electricity.

View More Details

Send Enquiry

Specifications

Model		MTWRS1316	MTWRS1330	MTWRS1330
Drive / Type of Operation		Electric / Pedestrain
Load capacity	Kgs	1300
Load center	Mm	600
Service weight	Kgs	1820	2020	2460
Tyres	Polyurethane
Lowest mast height	Mm	2076	2100	2096
Free Lift	Mm	1550	1520	1520
Lifting height	Mm	1600	3000	4500
Extemted mast height	Mm	2463	3863	5395
Fork lowered height	Mm	50
Over all length	1 (mm)	2265	2290	2400
Length of face fork	I2(mm)	1115	1140	1250
Over all width	Mm	1104
Fork dimentions	Mm	35/100 950 (1150)
Width over forks	Mm	200 740
Reach Distance	Mm	550		580
Ground clearnce	Mm	60
Turining radius	Mm	1593		1689
Service brake		Electro magnetic
Drive Motor rating	Kw	1.8
Lifting motor rating	Kw	2.2		3
Battery voltage	v/Ah	24/270		24/400
