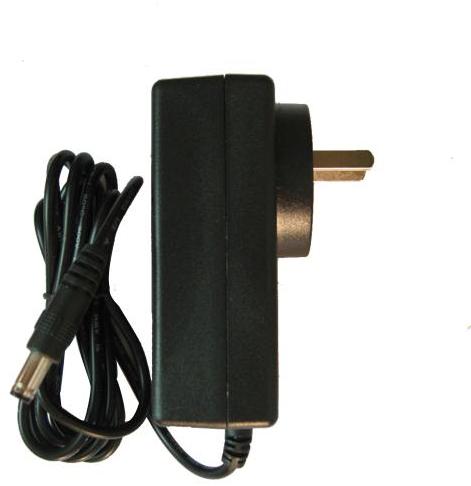

Wall-mount AC, DC Adapter

Product name�24W AC/DC Adapter-Switching Power Supply
Item�TPW-02401
Details�
24W Wall-Mount AC/DC Adapter,Switching power supply
Euro/US/UK/EK/AU/SAA style
Input Condition : 100 to 240VAC 50/60 Hz 0.8A Max
Input Rated Voltage : 100 to 240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current : 0.80A Max
Input Inrush Current : 30A Max
Input No Load Power Consumption : 0.5W Max At 115Vac/230Vac
Efficiency : 85% Min
Rated Output Power: 24W Max.
Output Voltage & Current : 3VDC-48VDC / 0.5-3A
Output Load Regulation : ±5%
Protection : OCP OVP SCP OPP
Dielectric Withstand Voltage : 3KV 5mA 60s
Leakage Current : 0.25 mA At 230Vac
Operating Temperature: 0 to 70�
Storage Temperature: -10 to 85�
Relative Humidity: 20 to 80%
