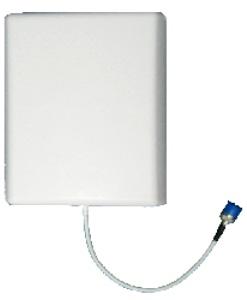

Contact SupplierWe offer wall-mounted antenna.
Application:2g3g mobile networks
frequency range:800-960 1710-2500mhz
average gain:5-8 dbi 800-960 mhz
6-8 dbi 1710-2500 mhz
vswr:1.5 :1
impedance:50ω
max input power:100w
polarization:vertical
hpbw:360
radome color:white
radome dimensions:207×180×45 mm
cable and connector:n female
operating temperature:-30℃ to +60℃
storage temperature:-40℃ to +70℃
net weight:500g
accessories:bracket
free sample
price and other details to be agreed
widely used in wireless equipments of gsm, cdma, wcdma, cdma2000, td-scdma, lte, dvb-t, gps, gpsone, glonass, beidou, wi-fi, wimax, bluetooth, isa100, zigbee, wireless hart, wia-pa, etc. Such as mobile phone, pad, router, wireless surveillance, wireless security, industrial wireless networks, navigation device, vehicle wireless device, etc.
