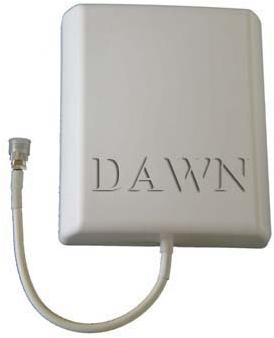

Model: DB-698/2700-7-65
Specification of Panel Antenna:
Frequency Range:698-2700MHz
Gain:7dBi
Horizontal Beam width:65°
Vertical Beam width:55°
VSWR:� 2.0
Input Impedance:50Ω
Electrical Down tilt:0°
Front to Back Ratio:�15dB
Max. Power:50W
Polarization:Vertical
Connector Type:N-Female
Lightning Protection:DC Ground
Radome Material:ABS
Radiating Element Material: Aluminum
Weight:0.5kg
Dimension:210�180�43mm
Features of Panel Antenna:
High Gain, Low VSWR;
Light weight, Good appearance;
Adopt good quality ABS, Long time Operation;
With customer mounting plate, Easy to mount.
