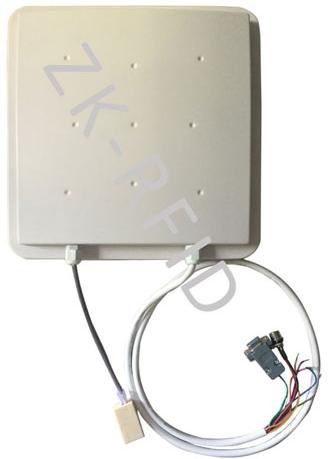

Warehouse Management 5m Mid Reange TCPIP UHF RFID Reader

We are offering
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 8dbi antenna optional with effect distance up to 6m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, Wiegand 2634 interface;
10. Provide DLL and Demonstration Software Source code to facilitate further development.
Specification
Model: ZK-RFID101
Protocol: ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Work Frequency: ISM 865-868MHz, 902~928MHz(can be customized)
Frequency Hopping: FHSS
Power Output: 0-30dBm(adjustable)
Antenna: Built-in 8dBi circular polarization antenna
Interface: RS232, RS485, wiegand 2634,TCPIP, with Wifi optional）
Operating Mode: Auto-running, interactive and trigger-activating
Read Range*: 0~6m
Write Range*: 0~3m
Reading Clue: Buzzer
Input Power: 100-240V,DC+9V (Power Adapter)
Dimension:255*255*60mm
N.W: 900g
G.W : 1700g
Operation Temp: -25°C~+70°C
Storage Temp: -25°C~+80°C
Humidity: 80%
Additional services: Free Demo&SDK provided
Application
Access Control Management, production line management, warehouse management, etc.
