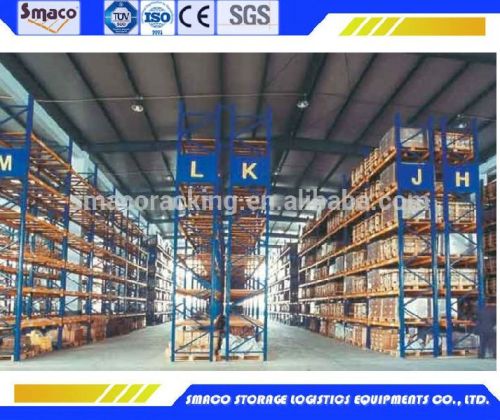

Warehouse Storage Heavy Shelf

Warehouse Storage heavy shelf  The heavy type of pallet rack is the most cost effective storage system with the lowest equipment and capital costs. It provides direct access to all pallets for 100% accessibility and good stock rotation.  1. Features: 1)Beam levers are adjustable in 75mm pitch interval. 2)Different sizes, various specifications and colors are available according to  customers` different needs. 3)Maximizes space use ratio in any warehouse configuration while retaining optimum product accessibility. 4)Strength and rigidity prevents compression damage to goods. 5)Bottom level of pallets can be stored on the floor, lowering structure costs.   2. Material:  High grade Q235B Steel   3. Finish:  High-quality Powder Coating Finishing.   4. Load Capacity & Dimension: Loading capacity: 500-2500 kgs UDL/beam level.Height: 1000-11000mmDepth: 400-1500mmLength: 1500-3600mmSpecail sizes also avaiable to specific storage needs.   5. Main Parts Specs: 1) Uprights:86*66*1.5, 86*66*2.0,86*66*2.2, 100*80*2.0, 100*80*2.5, 120*80*2.0,120*80*2.5,140*80*2.0,140*80*2.5mm, etc.2) Box beams: 88*40*1.3, 88*40*1.5, 108*40*1.3, 108*40*1.5, 125*45*1.3,125*45*1.5, 125*45*2.0, 145*50*1.5, 145*50*1.8, 165*50*1.5mm, etc., 3) Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
