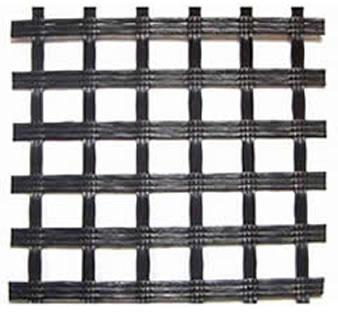

Warp Knitted Fiberglass Geogrid

We are offering warp knitted fiberglass geogrid.
Description:
warp knitted fiberglass geogrid is woven by high tensile modulus fiberglass filament as the raw material coated with adhesive.
　
properties:
1. High tensile strength in warp and weft directions
2. Low stretch rate
3. Excellent temperature range adaptability
4. Has excellent uv, alkali and oxidative resistance, which result in exceptional aging properties.
5. To eliminate the problem of pavement cracking on highways, roads and runways,
and driven by the need to reduce costs for infrastructure maintenance and repair.
　
application:
1. Used on asphalt pavement, bituminous concrete pavement and cement pavement
to prevent cracks from occurring and to prolong pavement service life.
2. Used as a basal reinforcement material for hillsides, reservoirs, harbors, ports, water channels
and dams, seawalls, and similar site work.
3. Used to reinforce railroad beds in soft soil.
Specification & index
index specification tgs-b-25-25 tgs-b-30-30 tgs-b-40-40 tgs-b-50-50 tgs-b-80-80 tgs-b-100-100
intensity warp 25 30 40 50 80 100
(kn/m) weft 25 30 40 50 80 100
breaking elongation % 　 3 max. 3 max. 3 max. 3 max. 3 max. 3 max.
Aperture (mm) 　 25.4*25.4 25.4*25.4 25.4*25.4 25.4*25.4 25.4*25.4 25.4*25.4
width (m) 　 1-6 1-6 1-6 1-6 1-6 1-6
　
package:
plastic bag or shrinkage bag with waterproof and uv stabilized pe film, 50m per roll or 100m per roll
