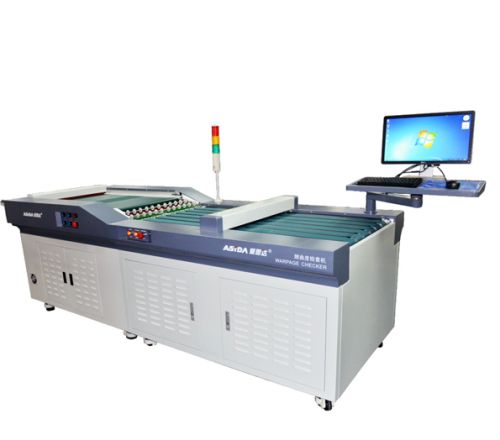

Warpage Checker

Warpage checker model:qq1000 pcb maufacturing machines usage this machine is used for detecting plate bending and warping on pcb finished board or a copper clad plate, and automatically make ok, ng judgement according to the detection result. Features (1)accurate high precision ccd laser displacement sensor measurement of plate ending plate become warped values with high stability. (2) intelligent and efficient (a) serial port rs232 data communication transmission technology, plc high-speed data communication technology precision platform installation technology, real-time image data shows that the use of technology such as technology. (b)the modular design, online detection speed can reach 12.5 mmin, but automatic identification of okng and receiving, respectively. Parameters item specification model asida-qq1000 inspection accuracy ±0.1mm objects inspection speed 6.5mmin , 12.5mmin,15mmin measurable warpage 0.3～5.0mm board size min:40mm x 80mm max:480mm x500mm machine size 3510mm×1160mm×1050mm（l×w×h） weight 450kg
