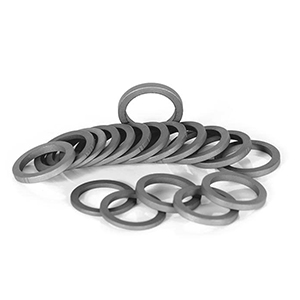

DIN 125 WASHER are standard metric washer. A washer is a thin plate disk-shaped with a hole in the middle that is normally used to distribute the load of a threaded fastener, such as a screw or nut. Are also important for preventing galvanic corrosion, particularly by insulating steel screws from aluminum surfaces.Â
SJS is one of the largest manufacturer of Din 125 Washer established in UAE since 1992. We follow the manufacturing standard of fasteners such as ASTM AISI BS EN ISO DIN & JIS. We are always striving to diversify our Din 125 Washer manufacturing capabilities to be able to satisfy the needs of our customers all around the globe regarding Din 125 Washer.
| DIA OF ROD | ID | OD | THK | |||
|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | |
| M8 | 8.40 | 8.62 | 16.00 | 15.57 | 1.80 | 1.40 |
| M10 | 10.50 | 10.77 | 20.00 | 19.48 | 2.20 | 1.80 |
| M12 | 13.00 | 13.27 | 24.00 | 23.48 | 2.70 | 2.30 |
| M14 | 15.00 | 15.27 | 28.00 | 27.48 | 2.70 | 2.30 |
| M16 | 17.00 | 17.27 | 30.00 | 29.48 | 3.30 | 2.70 |
| M18 | 19.00 | 19.33 | 34.00 | 33.38 | 3.30 | 2.70 |
| M20 | 21.00 | 21.33 | 37.00 | 36.38 | 3.30 | 2.70 |
| M22 | 23.00 | 23.33 | 39.00 | 38.38 | 3.30 | 2.70 |
| M24 | 25.00 | 25.33 | 44.00 | 43.38 | 4.30 | 3.70 |
| M26 | 27.00 | 27.33 | 50.00 | 49.38 | 4.30 | 3.70 |
| M27 | 28.00 | 28.33 | 50.00 | 49.38 | 4.30 | 3.70 |
| M28 | 29.00 | 29.33 | 50.00 | 49.38 | 4.30 | 3.70 |
| M30 | 31.00 | 31.39 | 56.00 | 55.26 | 4.30 | 3.70 |
| M32 | 33.00 | 33.62 | 60.00 | 58.80 | 5.60 | 4.40 |
| M33 | 34.00 | 34.62 | 60.00 | 58.80 | 5.60 | 4.40 |
| M35 | 36.00 | 36.62 | 66.00 | 64.80 | 5.60 | 4.40 |
| M36 | 37.00 | 37.62 | 66.00 | 64.80 | 5.60 | 4.40 |
| M38 | 39.00 | 39.62 | 72.00 | 70.80 | 6.60 | 5.40 |
| M39 | 40.00 | 40.62 | 72.00 | 70.80 | 6.60 | 5.40 |
| M40 | 41.00 | 41.62 | 72.00 | 70.80 | 6.60 | 5.40 |
| M42 | 43.00 | 43.62 | 78.00 | 76.80 | 8.00 | 6.00 |
| M45 | 46.00 | 46.62 | 85.00 | 83.60 | 8.00 | 6.00 |
| M48 | 50.00 | 50.62 | 92.00 | 90.60 | 9.00 | 7.00 |
| M50 | 52.00 | 52.74 | 92.00 | 90.60 | 9.00 | 7.00 |
| M52 | 54.00 | 54.74 | 98.00 | 96.60 | 9.00 | 7.00 |
| M55 | 57.00 | 57.74 | 105.00 | 103.60 | 10.00 | 8.00 |
| M56 | 58.00 | 58.74 | 105.00 | 103.60 | 10.00 | 8.00 |
| M58 | 60.00 | 60.74 | 110.00 | 108.60 | 10.00 | 8.00 |
| M60 | 62.00 | 62.74 | 110.00 | 108.60 | 10.00 | 8.00 |
| M64 | 66.00 | 66.74 | 115.00 | 113.60 | 10.00 | 8.00 |
| M68 | 70.00 | 70.74 | 120.00 | 118.60 | 11.00 | 9.00 |
| M72 | 74.00 | 74.74 | 125.00 | 123.40 | 11.00 | 9.00 |
| M76 | 78.00 | 78.74 | 135.00 | 133.40 | 11.00 | 9.00 |
| M80 | 82.00 | 82.87 | 140.00 | 138.40 | 13.20 | 10.80 |
| M85 | 87.00 | 87.87 | 145.00 | 143.40 | 13.20 | 10.80 |
| M90 | 93.00 | 93.87 | 160.00 | 158.40 | 13.20 | 10.80 |
| M95 | 98.00 | 98.87 | 165.00 | 163.40 | 13.20 | 10.80 |
| M100 | 104.00 | 104.87 | 175.00 | 173.40 | 15.20 | 12.80 |
