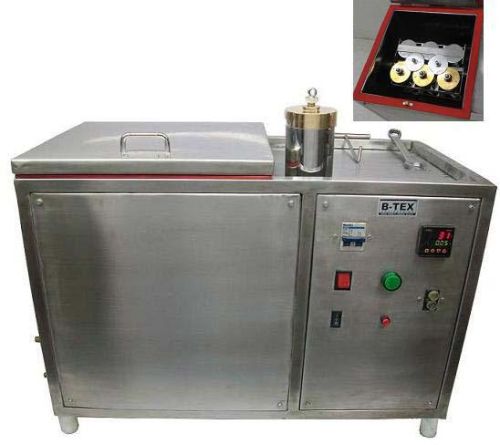

Contact SupplierWashing Fastness Tester is used widely for determining color fastness of textile materials to washings. At B-Tex Engineering we offer best quality instrument at best price and as per the required standards.
The color fastness of textile material is determined by way of mechanical hesitation of a specimen of textile with the piece of specified adjacent fabrics in Standard Soap Solution followed by rinsing and drying. Thereafter, the change in color of specimen and stains of the adjacent fabrics are assessed with standard grey scale.
Features of Washing Fastness Tester:
It is fabricated out of quality stainless steel.
Possess electric heater to heat water in water bath.
The microprocessor based programmer is provided for temperature control.
Buzzer to indicate the completion of the process cycle or step.
Specificationsof Washing Fastness Tester:
Electric Supply : Single phase 220 Volts, AC Supply
Heater Supply : 3000 watt Single Phase
Inner dimensions of the Main Bath : 450 X 410 X 295 mm
Number of Beakers (Test Vessels) : 06 Nos. Leak-proof Beakers with Gaskets
Standard Seal for Beakers : 06 Nos. Special Neoprene Gaskets
Volume of each Beaker : 550±50 ml X 06 Beakers
Distance from Shaft : 45±10 mm
Speed of Rotation : 40±2 rpm
Temperature Controller : PROGRAMMABLE MEMORY BASED DIGITAL
Temperature Regulation : PT-100 with ±2.0°C (As per I.S.O.)
Timer (Digital) : 0-99 Minutes
Motor : Single Phase, Geared Motor 220 Volt AC
Overall Dimensions of the unit : 700 x 470 x 370 mm
Net Weight of the Unit : 50 Kg
Technical specifications & appearance of machines are subject to change without any notice.
Washing Fastness Tester confirms with the following international standards:
ISO 105, BS 1006:1990, AATCC 61(TEST 1 A ONLY), 86,132,151,190, BS EN 20105
How Washing Fastness Tester Works?
Precondition the main bath, choosing the temperature and time suitable for the test.
Fill each jar with necessary amount of Standard Soap Solution to
