Waste Cable Recycling Machine

we are offering Waste Cable Recycling Machine. Product parameters
Model： QY-400A
Name： QY-400A
Help：
video：

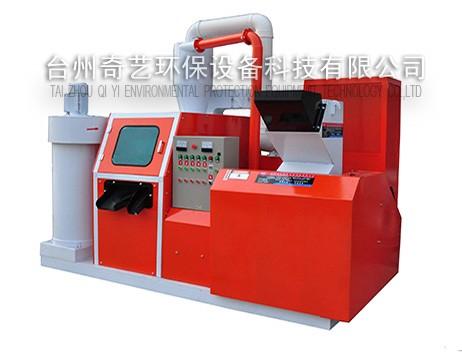

QY-400A Dry-type copper recycling production line:
The whole production line has unique structure，big process capacity and low power consumption。With high separation rate，the separation is conducted by several parts。This equipment has not only improved the purity of copper，but also reduced the pollution to the environment。
Craft diagram:
Features：
Suitable structure and layout, easy to install。
The crusher adopts double roller，low speed, high tear produces big output while little noise。
The design of separator and dust collector is handy for movement or transport。
The rotor of the grinder is alternating，leading to more efficiency，faster discharging，lower noise and more steady running。
The separation rate of air separator can reach at least 99%。
Feedback system will do the second crushing to the unfinished material, which guarantee the totally separation of metal and non-metal。
Dust-collector can prevent the leak of dust, the dust-cleaning rate can reach 99.99%。
Display:
Crushing part：
TXECHNICAL PARAMETER
Processing diameter
Φ20mm below
Overall dimension(LxWxH)
340*210*215cm
Machine weight
2800kg
Motor voltage
380V220V
Output (10h)
1500kg-1800kg
Motor Power
22KW
