Waste Oil Extractor

We are offering waste oil extractor ,
we are acknowledged as the reputed trader of waste oil recovery equipment made up of optimum quality components. Our equipment is extremely efficient that is developed with different base materials such as steel, brass, aluminum, and many more.

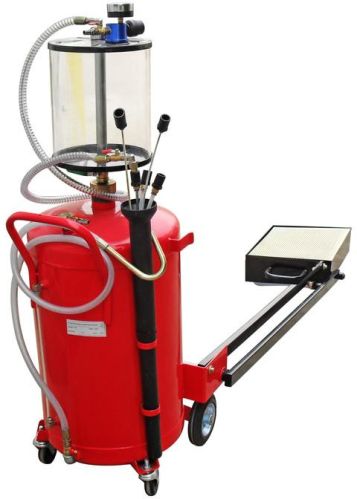

3180 air-operated pantograph waste oil suctiondrainers
universal pantograph oil suctiondrainer for cars with bowl, with wheel-mounted 70-litre tank equipped with level-gauge, supplied with series of probes.
due to their versatility, these pantograph oil suctiondrainers are universal drainers because they can be used to change the oil of all motor vehicles:
- by gravity with tank on floor - by gravity with tank raised, with motor vehicles placed on auto lift or pit.
- by suction with probe inserted directly in the engine, and anywhere because they do not require continuous connection to the compressed-air line or to other energy sources. (the oil must be hot 5080â°c).
article
3180
tank capacity
70l
bowl capacity
15l
depressurizing pressure
6-8bar
depressurization time
1-2min
suction speed with oil at the temperature of 50-80
0.6-1.6lmin
suction hose
1.5m
draining hose
1.5m
max.discharge pressure
1bar
noise level
75db
n.w.g.w.
25kg27kg
meas
500*440*960mm;270*270*420mm.
