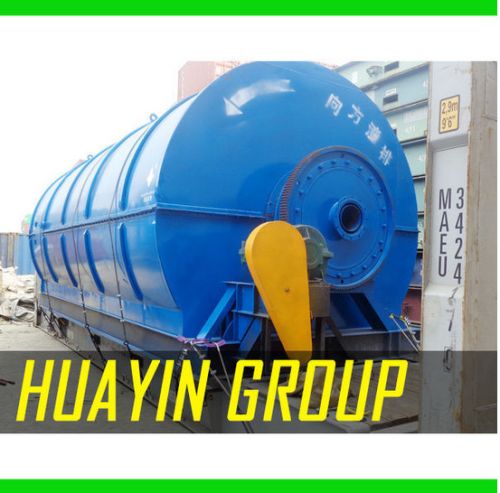

Waste Plastic Refining Oil Machine

We are offering waste plastic refining oil machine.
Main feature of waste plastic pyrolysis to oil plant
1). Heating system
reactor: using q245r boiler plate and the thickness is 12mm, 14mm, 16mm , the thickness would be changed according the customers'requirments.
The main engine use horizontal-type of 360°structure-0.8 rmin
2). Separation system
gas separator & depositing tank: depart the heavy oil and impurities from the oil gas to purify the oil.
3). Condensing system
generally speaking , for all the raw material all be finished by heating to gasification and cracking, and then cooling to get oil, so they key is the relationship between the yield rate and condensation. So the best and easy way is to increase the condense area so as to get higher yield rate.
4). Dedusting system
desulfurization dedusting, water film cyclone, desulfurization dedusting:remove the sulphur(when use coal as fuel) and dust
water purification: for the second removal.
5). Waste gas recycles system
water seal & spray fire gun: in the process of refining oil, when the gas is heated up to 150 , it will produce a large amount of gas ch4&c4h8 ,which cannot convert to liquid at normal temperature and normal pressure. However, these gases can be used as fuel, which is not only environment protection but also energy conservation
6). Carbon black recycles system
heaving dragon screw conveyer: the solid residual will be left after the catalyst splitting from scrap plastic, approximately take up 5% to 10% of the waste tire.
Its main component is the black carbon, which can be used as raw materials in industry, as well could be mixed with the pulverized coal ash to produce the raw material of the thermal power plant, and also could be applied to the manufacturingof the pulverized coal ash brick (one kind of environmental protection building material).
