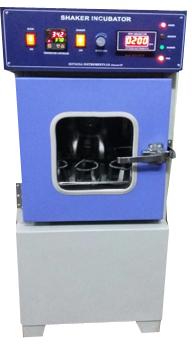

Water Bath Incubator Shaker

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Bath has an oscillating tray riding on ball rollers oscillated through a geared variable speed motor. Fitted with PMDC heavy duty motor for continuous operations. Shaking tray can either hold test....

View More Details

Send Enquiry

Company Information

Hotking Instruments Company

Valasaravakkam, Chennai, Tamil Nadu

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Bath has an oscillating tray riding on ball rollers oscillated through a geared variable speed motor.
Fitted with PMDC heavy duty motor for continuous operations.
Shaking tray can either hold test tubes or Erlenmeyer flasks of 25 ml or 50 ml or 100 ml or 250 ml or 500 ml, as ordered by the users.(Kindly mentions the capacity of the flasks while ordering).
Supplied complete with one shaking tray as a standard accessory.
Supplied with GABLED DOME LID for dripping of all condensate into the bath inside periphery
Fitted with THYRISTOR BASED DC DRIVE for speed range form 40 to 140 cycles per minute.
To work on 220 / 230 V. A.C. supply.
Double walled construction.
Space between the walls is filled with special grade mineral wool in order to avoid thermal losses.
Speed regulator is provided on the front panel to control the shaking motion.
MOC (Inner): Inner bath chamber and lid made of Stainless Steel (SS-304 grade).
MOC (Outer): Outer chamber is made of Mild Steel duly powder coated.

Internal Dimensions (LXBXD)	275x275x150 mm	405x300x150 mm
Capacity	12 ltrs	18 ltrs
Heating Load	2.5 KW (2.0 KW + 0.5 KW)
Temperature Range	Amb. +5^OC to 100 ^OC
Controller (OPTION)	Microprocessor based PID Digital Temperature Indicator-cum-Controller OR Microprocessor based PID Digital Temperature Indicator-cum-Controller with Automatic Digital Minute Timer which start Automatically when set/desired value of temperature is attained. When the set time period is over the heaters fet switched off automatically and unit sounds a Buzzer alerting the user that the process is complete.
Display	Digital LED with set value (SV) process value (PV)
Temperature Accuracy	+0.5 ^OC
Temperature Sensor	RTD (Pt-100)
Shaking Speed	40 to 140 cycles/minute
Diffuser Shelf	Heater protective perforated cover made of stainless steel
Regulator	Solid state electronic relay with protective heat sink
