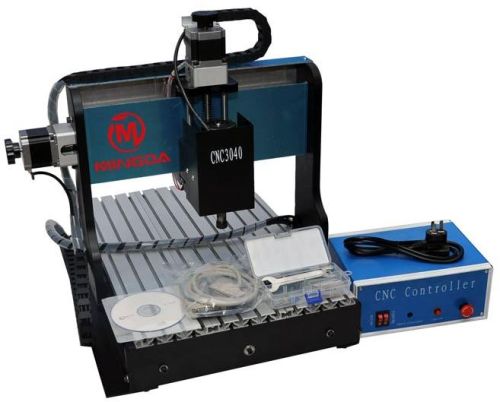

Water Cooled 3d Engraving Cutting Machine

Factory priceCheapest
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering water cooled 3d engraving cutting machine. model cnc3040 dimension 660x540x470mm work area 450x240mm x,y,z axis woking travel 300x400x90mm the max thickness of carved....

View More Details

Send Enquiry

Product Details

We are offering water cooled 3d engraving cutting machine.
model cnc3040
dimension 660x540x470mm
work area 450x240mm
x,y,z axis woking travel 300x400x90mm
the max thickness of carved objects 120mm
rack material 6061+6063aluminum alloy
transmission unit x ,y,z axis is 1605 ball screw
sliding unit x:φ16,y:φ20,z:φ12
consumption dc110v,240w
spindle power 200wac220, scm stepless speed regulation
speed (rpm) 0-14000
clamping diameter 3.175mm
cooling way air cooled
feeding speed max(mmmin) 4000
carving speed(mmmin) 0~1000
carving accuracy 0.03mm
repositioning accuracy
(mm) 0.03mm
input voltage 220v or 110v
instruction format g code (tap, nc, ncc, text)
compatible software mach3type3artcamcadcam etc
