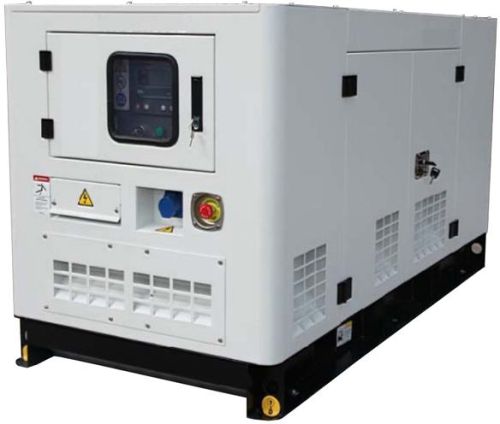

Water Cooled Diesel Generators, Brand Name : CHANGCHAI

₹ 2.62 Lakh / Piece

MOQ5 Piece(s)
Brand NameCHANGCHAI
Rated Voltage400/230
Rated Power10.6KVA/8.5KW
Rated Current36.95A
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 1913

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameCHANGCHAI
Rated Voltage400/230
Rated Current36.95A
Rated Power10.6KVA/8.5KW
Speed1500rpm
Country of OriginJiangsu China
Model NumberCCFD10STA3

Genset Model CCFD10STA3
Prime Power ( KVA/kW) 10.6/8.5
Standby Power (KVA/kW) 11.8/9.5
Rated Voltage (V) 400/230
Rated Frequency ( Hz) 50
Phase three
Engine Model CZ380Q
Rated Power (kW) 10
Rated Speed (rpm) 1500
Cylinder Number 3-In Line
Bore*Stroke (mm) 80*90
Compress Ratio 18:01
Governor type Mechanical
Displacement (L) 1.4
Oil Capacity (L) 4.5
Cooling Method Water-Cooled
Fuel Type Diesel
Fuel Consumption at 100% Load ( L/h) 3.5
Oil Consumption(g/kWh) not more than 4
Starting system DC12V Electrical Start
Alternator Model GMM164B
Rated Capacity (KVA/kW) 11/8.8
Efficiency 79.4%
Insulation Class H
Protection Grade IP23
Power Factor 0.8
Weight, Dimension
Open Type(mm) 1300*760*1050
Unit Weight (kg) 420
Silent Type(mm) 1650*760*1050
Unit Weight (kg) 500
Base Tank Capacity (L) 32
Quantity for 1x20'GP 14 units
Quantity for 1x40'HQ 28 units

Additional Information

Payment Terms L/CT/T
Port of DispatchShanghai China
Packaging DetailsOpen Type(mm) 1300*760*1050 Unit Weight (kg) 420 Silent Type(mm) 1650*760*1050 Unit Weight (kg) 500 Base Tank Capacity (L) 32 Quantity for 1x20'GP 14 units Quantity for 1x40'HQ 28 units
Delivery Time30 days after receiving the deposit
