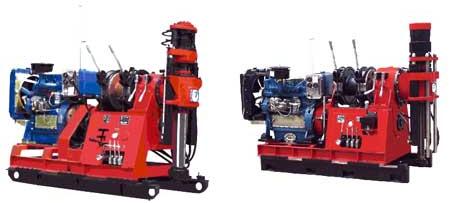

We are offering water drilling machine. feature : it can move on the skid, backward for lifting and forward for drilling. And distance moveable is 400mm.the driving stem is much stronger hexagonal....
it can move on the skid, backward for lifting and forward for drilling. And distance moveable is 400mm.
the driving stem is much stronger hexagonal kelly of 53*dia59mm
it has wide range of rotary forward speed from 54rpm to 956rpm, and reverse speed from 43rpm to 198rpm. With high speed it can drill small hole with diamond bit and with low speed, for large hole or drilling water well. And it is safer with low reverse speed.
two kinds of chuck, fully hydraulic type and mechanical type are optional. Manual chuck below is optional too.
with the spindle through hole diameter of 96mm, it is suitable for drilling hole with small or large diameter.
the drilling head part can swivel up to 360degree, so it can drill for horizontal, vertical or inclined hole.
electric motor or diesel is optional.
as a traditional model, it keeps many records of drilling more than 400m.
